US 12,498,045 B1
Irrigation valve assembly replacement method and system
Noah Brous, Plano, TX (US)
Filed by Noah Brous, Plano, TX (US)
Filed on Sep. 24, 2024, as Appl. No. 18/894,524.
Int. Cl. E03B 1/04 (2006.01); F16K 1/36 (2006.01); F16L 15/08 (2006.01)
CPC F16K 1/36 (2013.01) [F16L 15/08 (2013.01)] 12 Claims

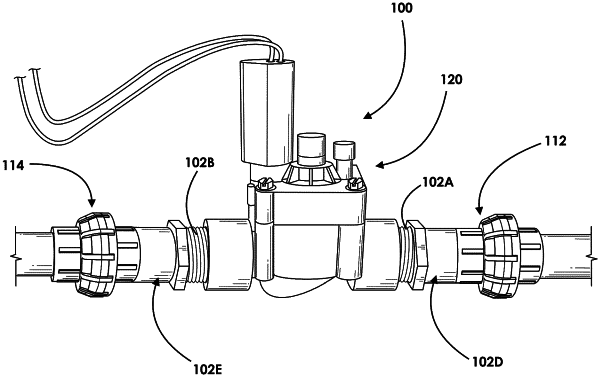

OG exemplary drawing

1. A method of assembling a solenoid valve assembly, the method comprising:
severing a riser pipe into a first member, wherein the first member comprises a threaded male end and a non-threaded male end;
securing a non-threaded female end of a second member to the non-threaded male end of the first member via one or more adhesives;
securing a threaded male end of the first member to a threaded female end of a third member; and
coupling a threaded male end of the second member to a solenoid valve inlet or outlet opening.
