US 12,490,069 B2
Service capability exposure at the user equipment
Catalina Mihaela Mladin, Hatboro, PA (US); Michael F. Starsinic, Newtown, PA (US); Hongkun Li, Malvern, PA (US); and Rocco Di Girolamo, Laval (CA)
Assigned to InterDigital Patent Holdings, Inc., Wilmington, DE (US)
Filed by InterDigital Patent Holdings, Inc., Wilmington, DE (US)
Filed on Oct. 20, 2022, as Appl. No. 18/048,111.
Application 18/048,111 is a continuation of application No. 17/149,902, filed on Jan. 15, 2021, granted, now 11,503,446.
Application 17/149,902 is a continuation of application No. 16/494,907, granted, now 10,932,111, issued on Feb. 23, 2021, previously published as PCT/US2018/023257, filed on Mar. 20, 2018.
Claims priority of provisional application 62/473,658, filed on Mar. 20, 2017.
Prior Publication US 2023/0074564 A1, Mar. 9, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. H04W 4/50 (2018.01); H04W 4/70 (2018.01); H04W 12/08 (2021.01); H04W 12/30 (2021.01)
CPC H04W 4/70 (2018.02) [H04W 4/50 (2018.02); H04W 12/08 (2013.01); H04W 12/35 (2021.01)] 14 Claims

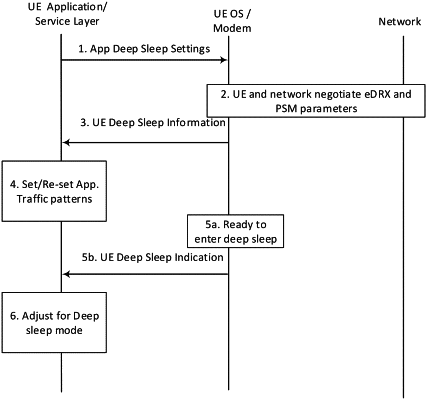

OG exemplary drawing

1. An apparatus comprising:
a non-transitory memory including instructions stored thereon for configuring a service of a network; and
a processor operably coupled to the non-transitory memory configured to execute the instructions of:
receiving, from the network, first information for accessing an exposure function, wherein the first information comprises an internet protocol (IP) address or a uniform resource identifier (URI) associated with the exposure function;
creating, based on the first information, a request that indicates a maximum latency and a suggested number of packets for buffering;
sending the created request to the exposure function; and
receiving a response from the exposure function,
wherein the response indicates whether the request indicating the maximum latency and the suggested number of packets was approved.
