US 12,487,212 B2
Gas chromatograph and carrier gas usage amount display method
Yuki Sakamoto, Kyoto (JP); and Yu Nagao, Kyoto (JP)
Assigned to SHIMADZU CORPORATION, Kyoto (JP)
Filed by SHIMADZU CORPORATION, Kyoto (JP)
Filed on Jul. 18, 2023, as Appl. No. 18/354,013.
Claims priority of application No. 2022-153041 (JP), filed on Sep. 26, 2022.
Prior Publication US 2024/0102974 A1, Mar. 28, 2024
Int. Cl. G01N 30/32 (2006.01); G01N 30/02 (2006.01)
CPC G01N 30/32 (2013.01) [G01N 2030/025 (2013.01); G01N 2030/324 (2013.01)] 11 Claims

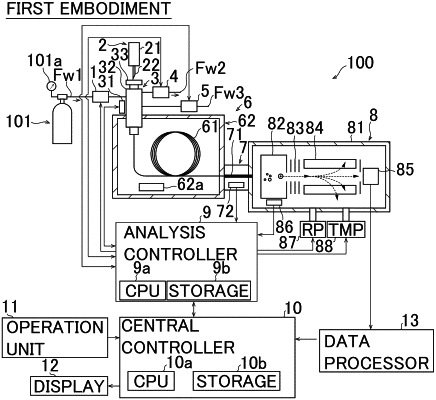

OG exemplary drawing

1. A gas chromatograph comprising:
a sample gas generator configured to generate a sample gas from an injected sample;
a separation column connected such that the sample gas generated in the sample gas generator is introduced thereinto and configured to separate components of the introduced sample gas;
a gas supply source configured to supply a carrier gas to the sample gas generator to carry the sample gas from the sample gas generator to the separation column when the components of the sample gas are analyzed;
a controller configured or programmed to acquire an in-analysis usage amount of the carrier gas based on an analysis time for analyzing the components of the sample gas, and a flow rate of the carrier gas supplied from the gas supply source to the sample gas generator; and
a display configured to display the in-analysis usage amount acquired by the controller.
