US 12,486,710 B2
Door system for opening and closing opening for entrance and exit of sensor for vehicles
Jae Sup Byun, Yongin-si (KR); and Jang Ho Kim, Yongin-si (KR)
Assigned to HYUNDAI MOBIS CO., LTD., Seoul (KR)
Filed by HYUNDAI MOBIS CO., LTD., Seoul (KR)
Filed on Feb. 27, 2024, as Appl. No. 18/588,901.
Claims priority of application No. 10-2023-0110611 (KR), filed on Aug. 23, 2023.
Prior Publication US 2025/0067110 A1, Feb. 27, 2025
Int. Cl. G08B 21/00 (2006.01); E05F 15/635 (2015.01)
CPC E05F 15/635 (2015.01) [E05Y 2900/531 (2013.01)] 8 Claims

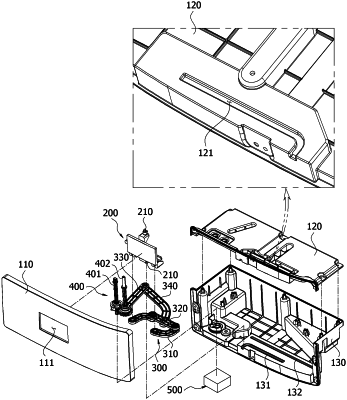

OG exemplary drawing

1. A door system for opening and closing an opening for entrance and exit of a sensor for vehicles, the door system comprising:
a housing configured to accommodate the sensor for vehicles therein and having an opening for entrance and exit of the sensor;
a door configured to slide along a guide groove provided on the housing to open and close the opening;
a door link unit configured to slide the door; and
a gear unit configured to transmit power of an actuator to the door link unit,
wherein the gear unit includes:
a first gear unit including a first shaft connected to the actuator and a first gear provided on the first shaft; and
a second gear unit including a second shaft disposed in parallel with the first shaft and a second gear provided on the second shaft and engaged with the first gear; and
wherein the door link unit includes a pair of guide links, one ends of which are rotatably connected to one side and the other side of a bottom surface of the door and the other ends of which are provided with sliding pins and connected to a sliding groove provided in a lower portion of the housing, a connecting link having one end and the other end rotatably connected to the other ends of the pair of guide links, a first door driving link having one end connected to the second gear and rotating together with the second gear, and a second door driving link having one end rotatably connected to the other end of the first door driving link and the other end rotatably connected to the connecting link.
