US 12,473,969 B2
Methods and systems for a gear box with multiple ratios
Gregory R. Andres, Blissfield, MI (US); Mitchell R. Lawson, Perrysburg, OH (US); Marcelo Nakandakari, Perrysburg, OH (US); and Andrew C. Shupe, Waterville, OH (US)
Assigned to DANA AUTOMOTIVE SYSTEMS GROUP, LLC, Maumee, OH (US)
Filed by Dana Automotive Systems Group, LLC, Maumee, OH (US)
Filed on Apr. 11, 2023, as Appl. No. 18/298,947.
Application 18/298,947 is a continuation of application No. 16/989,643, filed on Aug. 10, 2020, granted, now 11,674,590.
Prior Publication US 2023/0243415 A1, Aug. 3, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. F16H 57/04 (2010.01); B60K 1/00 (2006.01); B60K 17/06 (2006.01); F16H 3/091 (2006.01); F16H 37/04 (2006.01)
CPC F16H 57/0423 (2013.01) [B60K 1/00 (2013.01); B60K 17/06 (2013.01); F16H 3/091 (2013.01); F16H 57/0428 (2013.01); B60K 2001/001 (2013.01); F16H 37/04 (2013.01); F16H 2200/0021 (2013.01); F16H 2200/0039 (2013.01)] 18 Claims

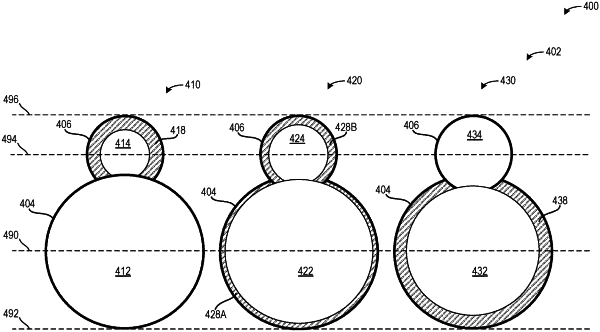

OG exemplary drawing

1. An electric drive axle system, comprising:
a gear box comprising a fixed center distance measured from a first carrier to an axle on which a plurality of pinions are arranged and a second fixed center distance measured from a second carrier to a second axle on which a plurality of gears are arranged;
a plurality of gear baffles, each of the plurality of gear baffles arranged at least partially around a gear of the plurality of gears and configured to reduce a size of a space between the gear and the second carrier, wherein each gear baffle of the plurality of gear baffles is differently sized; and
a plurality of pinion baffles, each of the plurality of pinion baffles arranged at least partially around a pinion of the plurality of pinions and configured to reduce a size of a space between the pinion and the first carrier, wherein each pinion baffle of the plurality of pinion baffles is differently sized, and wherein a largest gear of the plurality of gears and a largest pinion of the plurality of pinions do not comprise a baffle.
