US 12,133,669 B2
Automated dermatological cryospray treatment planning system
Jesse Rosen, Albany, CA (US); Erica Elford, San Mateo, CA (US); Dylan McReynolds, Berkeley, CA (US); and Erik Stauber, Albany, CA (US)
Assigned to R2 Technologies, Inc., San Ramon, CA (US)
Filed by R2 Technologies, Inc., San Ramon, CA (US)
Filed on Dec. 20, 2019, as Appl. No. 16/723,859.
Claims priority of provisional application 62/784,124, filed on Dec. 21, 2018.
Prior Publication US 2020/0214757 A1, Jul. 9, 2020
Int. Cl. A61B 18/02 (2006.01); A61B 5/00 (2006.01); A61B 18/00 (2006.01); A61B 34/20 (2016.01); G16H 20/40 (2018.01)
CPC A61B 18/0218 (2013.01) [A61B 5/441 (2013.01); A61B 34/20 (2016.02); G16H 20/40 (2018.01); A61B 2018/0047 (2013.01); A61B 2018/00714 (2013.01); A61B 2018/00791 (2013.01); A61B 2034/2065 (2016.02)] 37 Claims

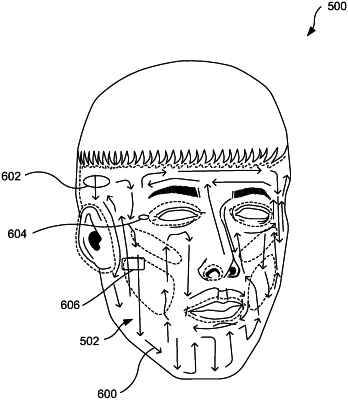

OG exemplary drawing

1. A skin cooling treatment system comprising:
a mechanical arm having a proximal end and a distal end;
a cryospray applicator coupled to the distal end of the mechanical arm, the cryospray applicator comprising an array of orifices, the cryospray applicator moveable by the mechanical arm to deliver a spray of cryogen to a portion of an area of skin tissue for treatment; and
a processor configured to:
receive imagery of a portion of skin of a patient for receiving a skin cooling treatment;
automatically identify boundaries from the received imagery to designate portions of the skin of the patient for receiving the skin cooling treatment;
select at least one potential treatment footprint;
generate a treatment path for the portion of skin of the patient designated for receiving the skin cooling treatment based on the identified boundaries and on the at least one potential treatment footprint;
deliver the skin cooling treatment to the skin according to the treatment path and the at least one potential treatment footprint; and
determine an instantaneous treatment footprint while delivering the skin cooling treatment to the skin according to the treatment path.
