US 12,463,369 B2
Electrical connector with removable load bar
Robert Brennan, York, PA (US); and Randy Schwartz, York, PA (US)
Assigned to SENTINEL CONNECTOR SYSTEMS, INC, York, PA (US)
Filed by Sentinel Connector Systems, Inc., York, PA (US)
Filed on Jan. 20, 2022, as Appl. No. 17/579,725.
Application 17/579,725 is a continuation in part of application No. 17/202,536, filed on Mar. 16, 2021, granted, now 11,594,836.
Prior Publication US 2022/0302629 A1, Sep. 22, 2022
Int. Cl. H01R 13/502 (2006.01); H01R 24/64 (2011.01); H01R 43/18 (2006.01)
CPC H01R 13/502 (2013.01) [H01R 24/64 (2013.01); H01R 43/18 (2013.01)] 16 Claims

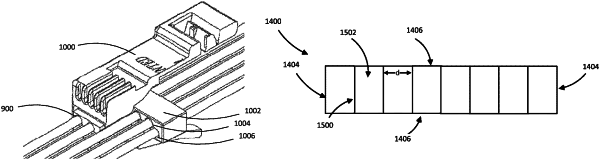

OG exemplary drawing

1. A modular plug system including:
a plug housing including a top surface, bottom surface and two opposing side surfaces, a front end having a cavity formed in the front end and an opening opposite the front end, with the cavity extending from the front end to the opening in the back end;
a cap unit that is inserted into the front end such that a surface of the front end is co-planer with a front surface of the cap unit,
a plurality of separators on a back side of the cap unit, where the separators are sized to accommodate a wire extending through a corresponding channel in the back surface of the cavity;
a plurality of cylinder units each extending from the back side of the cap unit with each cylinder unit being positioned between adjacent separators;
wherein,
the cavity has a back surface that is recessed from the front surface of the plug.
