US 12,461,369 B2
Communication device for facilitating verbal communication for deaf or hearing impaired people
Antonio Grassini, Angri (IT)
Assigned to HAGA2 S.R.L., Angri (IT)
Appl. No. 18/567,033
Filed by HAGA2 S.R.L., Angri (IT)
PCT Filed May 18, 2022, PCT No. PCT/IB2022/054623
§ 371(c)(1), (2) Date Dec. 5, 2023,
PCT Pub. No. WO2022/259065, PCT Pub. Date Dec. 15, 2022.
Claims priority of application No. 102021000015347 (IT), filed on Jun. 11, 2021.
Prior Publication US 2024/0264439 A1, Aug. 8, 2024
Int. Cl. G09G 5/00 (2006.01); G02B 27/01 (2006.01); G09B 21/00 (2006.01)
CPC G02B 27/017 (2013.01) [G09B 21/009 (2013.01); G02B 2027/0138 (2013.01)] 18 Claims

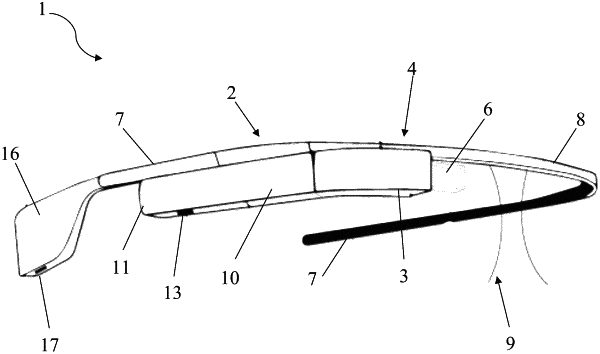

OG exemplary drawing

1. A communication device, comprising:
a support structure designed to be worn by a user at eye level;
a first synthesizer integral with said support structure and provided with one or more sensors suitable to detect an input produced by the user and transforming it into the corresponding words;
reproduction means adapted to reproduce sound or data corresponding to the words generated by said first synthesizer;
a second synthesizer suitable to turn the sound or data produced by said reproduction means and/or received from the outside into audio or word processing;
wherein said one or more sensors are adapted to detect the user's lip movement and turn it into the corresponding words;
wherein said support structure comprises a frame suitable for being worn by the user on the forehead and having lateral earpieces adapted to be positioned on a respective temple of the user and a central portion which connects said lateral earpieces;
wherein said support structure comprises a first arm having a first end hinged to one of said lateral earpieces and a second free end provided with said first synthesizer.
