US 12,461,036 B2
Assay apparatuses, methods and reagents including devices and methods for reducing crosstalk between CCD measurements
Gary I. Krivoy, Rockville, MD (US); Cecilia Zimmerman, Clarksburg, MD (US); Jules Vandersarl, Gaithersburg, MD (US); Sandor Kovacs, Middletown, DE (US); Aaron Leimkuehler, Upper St. Claire, PA (US); Leo Tabakin, Germantown, MD (US); Jon Willoughby, Potomac, MD (US); Manish Kochar, Rockville, MD (US); and Charles M. Clinton, Clarksburg, MD (US)
Assigned to MESO SCALE TECHNOLOGIES, LLC., Rockville, MD (US)
Appl. No. 17/603,771
Filed by Meso Scale Technologies, LLC., Rockville, MD (US); Gary I. Krivoy, Rockville, MD (US); Cecilia Zimmerman, Clarksburg, MD (US); Jules Vandersarl, Gaithersburg, MD (US); Sandor Kovacs, Middletown, DE (US); Aaron Leimkuehler, Upper St. Claire, PA (US); Leo Tabakin, Germantown, MD (US); Jon Willoughby, Potomac, MD (US); Manish Kochar, Rockville, MD (US); and Charles M. Clinton, Clarksburg, MD (US)
PCT Filed Apr. 22, 2020, PCT No. PCT/US2020/029227
§ 371(c)(1), (2) Date Oct. 14, 2021,
PCT Pub. No. WO2020/219495, PCT Pub. Date Oct. 29, 2020.
Claims priority of provisional application 62/837,567, filed on Apr. 23, 2019.
Prior Publication US 2022/0244188 A1, Aug. 4, 2022
Int. Cl. G01N 21/76 (2006.01); G01N 35/00 (2006.01); G01N 35/02 (2006.01); G01N 35/04 (2006.01)
CPC G01N 21/76 (2013.01) [G01N 35/00732 (2013.01); G01N 35/028 (2013.01); G01N 2035/0425 (2013.01); G01N 2035/0486 (2013.01)] 18 Claims

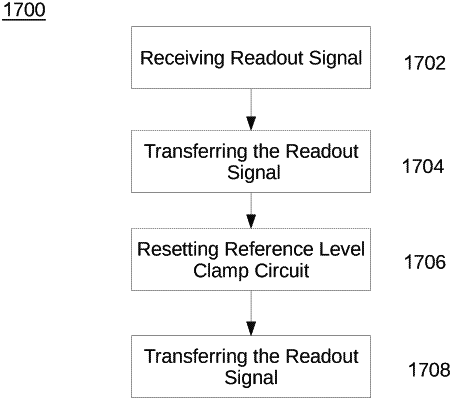

OG exemplary drawing

1. A system configured to measure a plurality of analytes in an assay plate with reduced crosstalk between analytes, the system including:
a CCD camera including a CCD, an analog front end circuit, and an analog to digital circuit, the CCD camera being configured to measure the plurality of analytes and coupled to a focusing system and a plate carriage system configured to locate the assay plate to facilitate measurement of the plurality of analytes,
wherein the analog front end circuit is configured to receive a readout signal from a serial register of the CCD and to transfer the readout signal to the analog to digital circuit to generate a plurality of image data points, the analog front end circuit includes a reference level clamp circuit configured with a time constant selected to fully reset a reference level between sequential image data point readings so as to reduce crosstalk between a first measurement of a first one of the plurality of analytes and a second measurement of a second one of the plurality of analytes.
