US 12,459,405 B2
Underframe for a height adjuster, and height adjuster
Lijo Mathew, Pune (IN); Dnyaneshwar Garad, Pune (IN); Vijay Unde, Pune (IN); Igor Gordeenko, Frechen (DE); Tobias Ewald, Hueckeswagen (DE); and Juraj Bagin, Dubnica nad Váhom (SK)
Assigned to Adient US LLC, Plymouth, MI (US)
Filed by Adient US LLC, Plymouth, MI (US)
Filed on Aug. 23, 2023, as Appl. No. 18/454,116.
Claims priority of application No. 10 2022 208 994.4 (DE), filed on Aug. 30, 2022.
Prior Publication US 2024/0067058 A1, Feb. 29, 2024
Int. Cl. B60N 2/16 (2006.01); B60N 2/12 (2006.01)
CPC B60N 2/164 (2013.01) [B60N 2/12 (2013.01)] 12 Claims

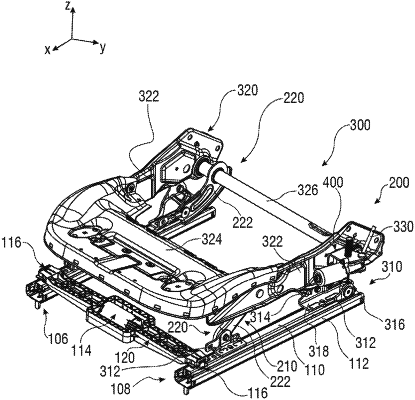

OG exemplary drawing

1. An underframe for a height adjuster of a vehicle seat, comprising:
a base frame which is connectable to a vehicle floor,
a seat frame which is adjustable relative to the base frame and has at least one frame part, and
a spindle drive unit for adjusting the seat frame relative to the base frame, wherein the spindle drive unit has a first bearing point, which is connected pivotably to the frame part, and a second bearing point, which is connected pivotably to the base frame.
