US 12,446,069 B2
User equipments, and base stations
Huifa Lin, Sakai (JP); Shoichi Suzuki, Sakai (JP); Daiichiro Nakashima, Sakai (JP); Toshizo Nogami, Sakai (JP); Wataru Ouchi, Sakai (JP); Tomoki Yoshimura, Sakai (JP); and Takahisa Fukui, Sakai (JP)
Assigned to SHARP KABUSHIKI KAISHA, Sakai (JP)
Appl. No. 18/025,193
Filed by Sharp Kabushiki Kaisha, Osaka (JP)
PCT Filed Sep. 14, 2021, PCT No. PCT/JP2021/034446
§ 371(c)(1), (2) Date Mar. 8, 2023,
PCT Pub. No. WO2022/059795, PCT Pub. Date Mar. 24, 2022.
Claims priority of application No. 2020-155313 (JP), filed on Sep. 16, 2020.
Prior Publication US 2023/0337279 A1, Oct. 19, 2023
Int. Cl. H04W 74/0808 (2024.01)
CPC H04W 74/0808 (2013.01) 3 Claims

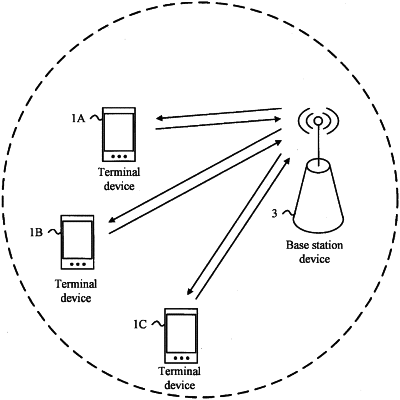

OG exemplary drawing

1. A terminal device comprising:
reception circuitry configured to sense a channel, receive a Fixed Frame Period (FFP)-g configuration including an Idle Period (IP)-g configuration and FFP-u configuration including IP-u configuration; and
transmission circuitry configured to initiate a Channel Occupancy Time (COT)-u at the beginning of an FFP-u after the channel is sensed to be idle and transmit an uplink transmission burst within the COT-u; wherein
a maximum COT is a duration from the beginning of the COT-u to the beginning of an IP-u included in the FFP-u, and
in a case that the maximum COT overlaps with an IP-g and the beginning of the IP-g is before the beginning of the IP-u, the uplink transmission is stopped before or at the beginning of the IP-g.
