US 12,445,793 B2
Automatic localization of audio devices
Daniel Arteaga, Barcelona (ES); Davide Scaini, Barcelona (ES); Mark R. P. Thomas, Walnut Creek, CA (US); Avery Bruni, San Francisco, CA (US); and Olha Michelle Townsend, San Francisco, CA (US)
Assigned to Dolby Laboratories Licensing Corporation, San Francisco, CA (US); and Dolby International AB, Dublin (IE)
Appl. No. 18/255,554
Filed by Dolby Laboratories Licensing Corporation, San Francisco, CA (US); and Dolby International AB, Dublin (IE)
PCT Filed Dec. 2, 2021, PCT No. PCT/US2021/061533
§ 371(c)(1), (2) Date Jun. 1, 2023,
PCT Pub. No. WO2022/120005, PCT Pub. Date Jun. 9, 2022.
Claims priority of provisional application 63/224,778, filed on Jul. 22, 2021.
Claims priority of provisional application 63/203,403, filed on Jul. 21, 2021.
Claims priority of provisional application 63/155,369, filed on Mar. 2, 2021.
Claims priority of application No. 202031212 (ES), filed on Dec. 3, 2020; and application No. 202130458 (ES), filed on May 20, 2021.
Prior Publication US 2024/0022869 A1, Jan. 18, 2024
Int. Cl. H04S 7/00 (2006.01); H04R 3/00 (2006.01); H04R 5/02 (2006.01)
CPC H04S 7/301 (2013.01) [H04R 3/005 (2013.01); H04R 5/02 (2013.01); H04S 7/303 (2013.01); H04R 2430/23 (2013.01); H04S 2400/15 (2013.01)] 17 Claims

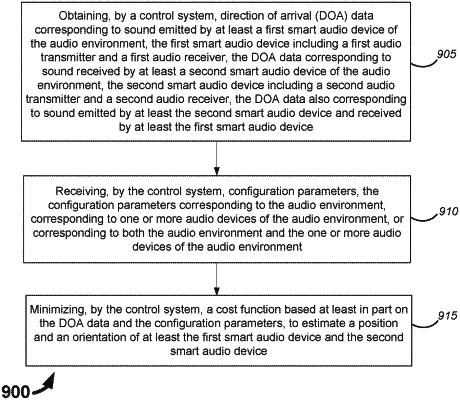

OG exemplary drawing

1. A method for localizing audio devices in an audio environment, the method comprising:
obtaining, by a control system, direction of arrival (DOA) data corresponding to sound emitted by at least a first smart audio device of the audio environment, the first smart audio device including a first audio transmitter and a first audio receiver, the DOA data corresponding to sound received by at least a second smart audio device of the audio environment, the second smart audio device including a second audio transmitter and a second audio receiver, the DOA data also corresponding to sound emitted by at least the second smart audio device and received by at least the first smart audio device;
receiving, by the control system, configuration parameters, the configuration parameters corresponding to the audio environment, corresponding to one or more audio devices of the audio environment, or corresponding to both the audio environment and the one or more audio devices of the audio environment; and
minimizing, by the control system, a cost function based at least in part on the DOA data and the configuration parameters, to estimate a position and an orientation of at least the first smart audio device and the second smart audio device.
