US 12,445,769 B1
Memory recall of sound filter stored in association with a discrete pose for audio beamforming
Jacob Ryan Donley, Seattle, WA (US); Nava K. Balsam, Woodinville, WA (US); and Vladimir Tourbabin, Woodinville, WA (US)
Assigned to Meta Platforms Technologies, LLC, Menlo Park, CA (US)
Filed by Meta Platforms Technologies, LLC, Menlo Park, CA (US)
Filed on Apr. 3, 2023, as Appl. No. 18/194,990.
Application 18/194,990 is a continuation of application No. 17/503,565, filed on Oct. 18, 2021, granted, now 11,659,324.
Claims priority of provisional application 63/183,276, filed on May 3, 2021.
This patent is subject to a terminal disclaimer.
Int. Cl. H04R 1/40 (2006.01)
CPC H04R 1/406 (2013.01) 18 Claims

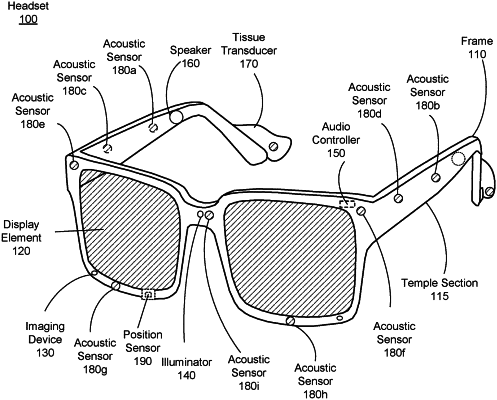

OG exemplary drawing

1. A method comprising:
determining that a microphone array during a first time period is in a first discrete pose of a plurality of discrete poses, wherein the plurality of discrete poses discretizes a pose space;
retrieving a sound filter associated with the first discrete pose from a memory cache, wherein the sound filter is generated using a set of data samples identified as associated the first discrete pose from one or more data samples, and wherein each data sample of the one or more data samples comprises an audio signal captured by each microphone of the microphone array during a given time window in a second time period that is before the first time period;
generating audio content using the sound filter; and
presenting, via a transducer array, the audio content.
