US 12,445,341 B2
Dynamic application of schema framework for inventory management
Pawan Shriwas, Indore (IN); Apurva Tripathi, Indore (IN); Shivangi Bagdare, Indore (IN); Pankaj Pachori, Indore (IN); Ayush Kumar Singh, Indore (IN); and Rashmi Soni, Indore (IN)
Assigned to RAKUTEN MOBILE, INC., Tokyo (JP)
Appl. No. 17/911,566
Filed by RAKUTEN MOBILE, INC., Tokyo (JP)
PCT Filed Jun. 23, 2022, PCT No. PCT/US2022/034631
§ 371(c)(1), (2) Date Dec. 28, 2023,
PCT Pub. No. WO2023/249627, PCT Pub. Date Dec. 28, 2023.
Prior Publication US 2024/0214257 A1, Jun. 27, 2024
Int. Cl. H04L 41/044 (2022.01); H04L 41/0853 (2022.01)
CPC H04L 41/044 (2013.01) [H04L 41/0853 (2013.01)] 20 Claims

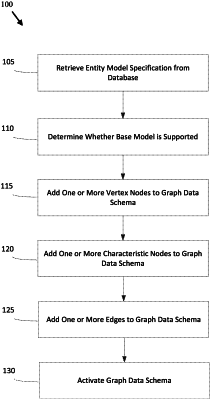

OG exemplary drawing

1. A method for managing network devices in a telecommunication network using a graph data schema, the method executed by one or more processors, the method comprising:
retrieving, from a database, an entity model specification associated with a network device being deployed, the entity model specification including a name of the entity model specification, a version, a type of network device, one or more operator specific characteristics, and one or more relationships;
determining whether a base model associated with the entity model specification is supported;
adding one or more vertex node labels in the graph data schema based on the name, the type of network device, and the version in the entity model specification;
adding one or more characteristic nodes in the graph data schema based on one or more characteristics;
adding one or more edges in the graph data schema on the one or more relationships in the entity model specification; and
based on no error being generated, activating the graph data schema to manage the network device being deployed in the telecommunication network.
