US 12,445,331 B2
Method for demodulating a RF signal in the presence of inband harmonic spurs
Didier Harnay, Cesson Sevigne (FR); and Francois Sittler, Thorigne-Fouillard (FR)
Assigned to STMICROELECTRONICS (GRAND OUEST) SAS, Le Mans (FR)
Filed by STMicroelectronics (Grand Ouest) SAS, Le Mans (FR)
Filed on Dec. 11, 2023, as Appl. No. 18/535,788.
Claims priority of application No. 22306989 (EP), filed on Dec. 22, 2022.
Prior Publication US 2024/0214250 A1, Jun. 27, 2024
Int. Cl. H04L 27/227 (2006.01); H04L 27/00 (2006.01)
CPC H04L 27/2276 (2013.01) [H04L 27/0014 (2013.01); H04L 2027/0016 (2013.01); H04L 2027/0051 (2013.01)] 24 Claims

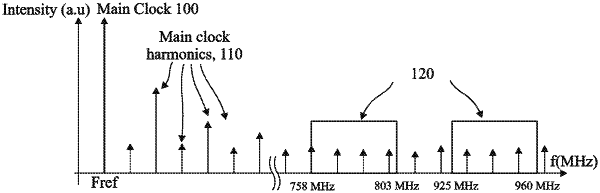

OG exemplary drawing

1. A method for demodulating a radio frequency (RF) signal, the method comprising:
determining a nearest harmonic of a clock signal from a central frequency of a received frequency band; and
when the nearest harmonic is in the received frequency band, setting an intermediate frequency of a Near Zero Intermediate Frequency (NZIF) receiver to a difference between the central frequency and the nearest harmonic.
