US 12,445,026 B2
Method for removing an electromagnetic module from an electrical machine
Julio César Urresty, Barcelona (ES); Sadeo Ramtahal, Schenectady, NY (US); and César Muñiz Casais, Barcelona (ES)
Assigned to GE Vernova Renovables Espana, S.L., Barcelona (ES)
Filed by General Electric Renovables España, S.L., Barcelona (ES)
Filed on Dec. 15, 2022, as Appl. No. 18/081,995.
Application 18/081,995 is a division of application No. 16/937,249, filed on Jul. 23, 2020, granted, now 11,552,538.
Claims priority of application No. 19382641 (EP), filed on Jul. 26, 2019.
Prior Publication US 2023/0120790 A1, Apr. 20, 2023
Int. Cl. H02K 15/50 (2025.01); F03D 9/25 (2016.01); F03D 15/00 (2016.01); F03D 80/60 (2016.01); H02K 1/18 (2006.01); H02K 1/20 (2006.01); H02K 1/32 (2006.01); H02K 7/18 (2006.01); H02K 21/14 (2006.01); H02K 1/27 (2022.01); H02K 3/46 (2006.01)
CPC H02K 15/50 (2025.01) [F03D 9/25 (2016.05); F03D 15/00 (2016.05); F03D 80/60 (2016.05); H02K 1/185 (2013.01); H02K 1/20 (2013.01); H02K 7/1838 (2013.01); H02K 21/14 (2013.01); F05B 2230/70 (2013.01); H02K 1/27 (2013.01); H02K 3/46 (2013.01); H02K 2213/12 (2013.01)] 14 Claims

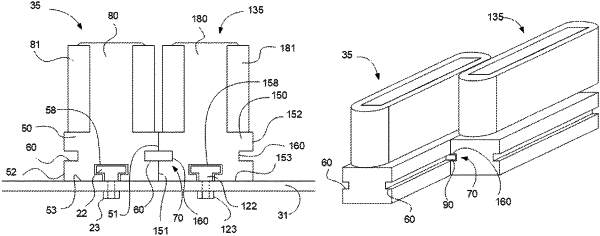

OG exemplary drawing

1. An electrical machine having a rotor and a stator, the electrical machine comprising:
a plurality of electromagnetic modules having an electromagnetic material, the electromagnetic material being one of a permanent magnet or a stator winding, each of the electromagnetic modules comprising:
a base and a support extending from the base and supporting the electromagnetic material, the base comprising:
a bottom surface;
a first side surface and a second side surface, one or both of the first and second side surfaces comprising an axially extending open-sided groove;
wherein the open-sided groove mates with the open-sided groove of an adjacent electromagnetic module to define a closed-sided cooling channel; and
wherein the open-sided groove is configured for sliding receipt of a rod therein such that the stator segment is removable from an electrical machine by sliding along the rod.
