US 12,445,024 B2
Resolver with a stator and a cover
Xingzhe Zhang, Winston Salem, NC (US); Georg Friesen, Winston Salem, NC (US); Oscar Sosa, Tlalnepantla (MX); Mark Rice, Winston Salem, NC (US); and Jose Antonio Aispuro, Tlalnepantla (MX)
Assigned to TEC CONNECTIVITY SOLUTIONS GmbH et al., Schaffhausen (CH)
Filed by TE Connectivity Solutions GmbH, Schaffhausen (CH); and TE Sensores, S. De R.L. DE C.V., Sonora (MX)
Filed on Jan. 31, 2023, as Appl. No. 18/161,940.
Prior Publication US 2024/0258887 A1, Aug. 1, 2024
Int. Cl. H02K 5/22 (2006.01); H02K 15/02 (2006.01); H02K 15/14 (2006.01)
CPC H02K 15/02 (2013.01) [H02K 5/225 (2013.01); H02K 15/14 (2013.01); H02K 2215/00 (2021.08)] 20 Claims

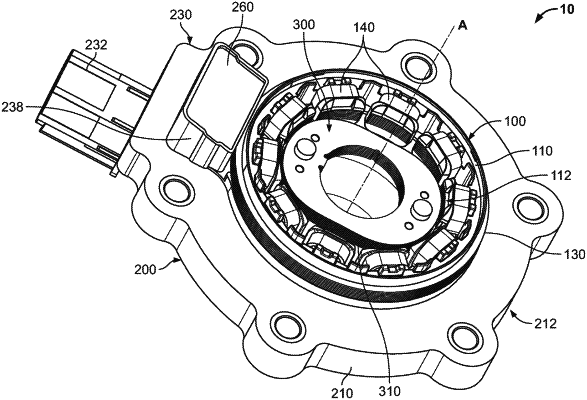

OG exemplary drawing

1. A resolver, comprising:
a stator having a stator body formed of a first plastic material; and
a cover covering a side of the stator, the cover having a cover body formed of a second plastic material, the first plastic material of the stator body is attached to the second plastic material of the cover body by a plastic weld.
