US 12,444,879 B2
Strain relief device for electrical connectors
John Morello, Warren, OH (US); and James M. Rainey, Warren, OH (US)
Assigned to APTIV TECHNOLOGIES AG, Schaffhausen (CH)
Filed by Aptiv Technologies AG, Schaffhausen (CH)
Filed on Nov. 17, 2022, as Appl. No. 17/989,039.
Claims priority of provisional application 63/290,820, filed on Dec. 17, 2021.
Prior Publication US 2023/0198198 A1, Jun. 22, 2023
Int. Cl. H01R 13/58 (2006.01)
CPC H01R 13/5825 (2013.01) 13 Claims

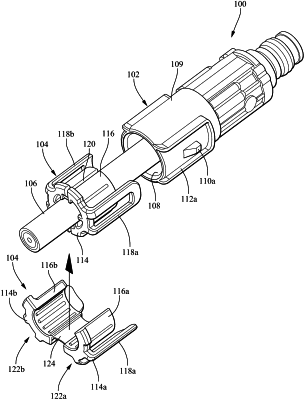

OG exemplary drawing

1. A terminal assembly comprising:
a connector housing having an opening at a first end for receiving a cable, the opening having an inner surface defined by a housing inner diameter; and
a strain relief device having an annular base and a cylindrical portion extending from the annular base, the cylindrical portion having an inner surface having a diameter selected to surround the cable and an outer surface having an outer diameter configured to fit within the opening of the connector housing, the fit between the cylindrical portion of the strain relief device and the inner surface of the connector housing generating a clamping force between the strain relief device and the cable, the strain relief device including a plurality of ribs extending axially along the outer surface of the cylindrical portion, the plurality of ribs configured to deform due to exertion of force by the inner surface of the connector housing on the plurality of ribs generated by inserting the cylindrical portion within the opening of the connector housing.
