US 12,444,870 B2
Power connector and power outlet
Minoru Kobayashi, Kyoto (JP); Nanako Hinokitani, Kyoto (JP); and Shuichi Itoda, Kyoto (JP)
Assigned to OMRON CORPORATION, Kyoto (JP)
Appl. No. 18/037,748
Filed by OMRON Corporation, Kyoto (JP)
PCT Filed Sep. 14, 2021, PCT No. PCT/JP2021/033630
§ 371(c)(1), (2) Date May 18, 2023,
PCT Pub. No. WO2022/130712, PCT Pub. Date Jun. 23, 2022.
Claims priority of application No. 2020-207339 (JP), filed on Dec. 15, 2020.
Prior Publication US 2023/0411886 A1, Dec. 21, 2023
Int. Cl. H01R 13/10 (2006.01); H01R 13/639 (2006.01); H01R 13/652 (2006.01)
CPC H01R 13/10 (2013.01) [H01R 13/639 (2013.01); H01R 13/652 (2013.01)] 13 Claims

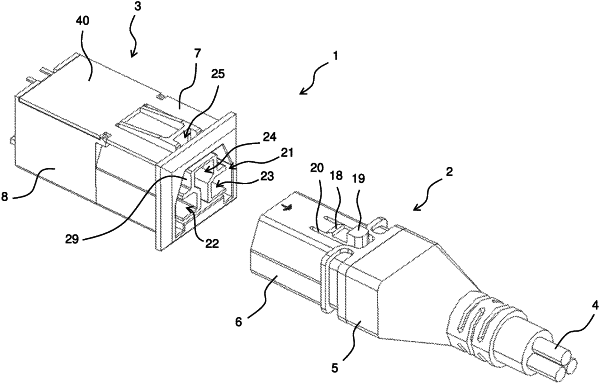

OG exemplary drawing

1. A power connector comprising:
an electric plug including a first plug terminal, a second plug terminal, a plug ground terminal, a pressing portion, a first terminal support portion, a second terminal support portion, and a plug hole, the plug ground terminal, the pressing portion, the first terminal support portion, the second terminal support portion being disposed in the plug hole, the pressing portion being disposed below the plug ground terminal and supporting the plug ground terminal from below, the first terminal support portion being disposed above the first plug terminal and supporting the first plug terminal from above, the second terminal support portion being disposed above the second plug terminal and supporting the second plug terminal from above; and
a power outlet including
a first fixed terminal,
a first fixed contact connected to the first fixed terminal,
a second fixed terminal,
a second fixed contact connected to the second fixed terminal,
a first movable contact facing the first fixed contact,
a first movable piece connected to the first movable contact,
a second movable contact facing the second fixed contact,
a second movable piece connected to the second movable contact,
a socket including a first insertion port configured to allow the first plug terminal to be inserted, a second insertion port configured to allow the second plug terminal to be inserted, and a third insertion port configured to allow the pressing portion to be inserted,
a first connection terminal disposed in the first insertion port, the first connection terminal being connected to the first movable piece,
a second connection terminal disposed in the second insertion port, the second connection terminal being connected to the second movable piece, and
a plunger movable between a first position and a second position, the plunger being configured to separate the first movable contact from the first fixed contact and separate the second movable contact from the second fixed contact at the first position, the plunger being configured to press the first movable piece toward the first fixed terminal to make the first movable contact move into contact with the first fixed contact and press the second movable piece toward the second fixed terminal to make the second movable contact move into contact with the second fixed contact at the second position, the plunger being configured to move from the first position to the second position by being pressed by the pressing portion of the electric plug inserted into the third insertion port.
