US 12,444,839 B2
Antenna
Michael Mannan, Harrow Middlesex (GB)
Appl. No. 18/548,308
Filed by Michael Mannan, Harrow Middlesex (GB)
PCT Filed Feb. 23, 2022, PCT No. PCT/GB2022/050500
§ 371(c)(1), (2) Date Aug. 29, 2023,
PCT Pub. No. WO2022/185030, PCT Pub. Date Sep. 9, 2022.
Claims priority of application No. 2103037 (GB), filed on Mar. 4, 2021.
Prior Publication US 2024/0145916 A1, May 2, 2024
Int. Cl. H01Q 3/44 (2006.01); H01Q 1/32 (2006.01); H01Q 9/04 (2006.01)
CPC H01Q 3/44 (2013.01) [H01Q 1/3266 (2013.01); H01Q 1/3283 (2013.01); H01Q 9/0414 (2013.01)] 20 Claims

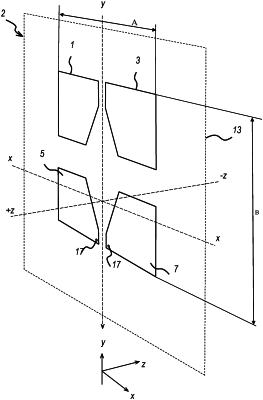

OG exemplary drawing

1. An antenna, comprising:
a pair of electrically conducting first lands disposed in a first plane, the pair of first lands being arranged to either side of, and spaced-apart from, an imaginary line on the first plane;
antenna feed means for the pair of electrically conducting first lands;
a pair of spaced-apart electrically conducting non-fed second lands, disposed in said first plane, the pair of second lands being spaced-apart from the pair of first lands along said imaginary line, being electrically-insulated from the pair of first lands, and the pair of second lands being arranged to either side of said imaginary line;
a non-fed third conducting land oriented in a second plane substantially parallel to the first plane; and
a non-fed fourth conducting land in a third plane substantially parallel to both the first plane and the second plane, offset from both first plane and the second plane with the second plane located between the first and third planes.
