US 12,444,837 B2
Housing for cavity phase shifter, cavity phase shifter and base station antenna
Keyun Di, Jiangsu (CN); Xun Zhang, Jiangsu (CN); Nengbin Liu, Jiangsu (CN); Puliang Tang, Jiangsu (CN); and Ruixin Su, Jiangsu (CN)
Assigned to Outdoor Wireless Networks LLC, Richardson, TX (US)
Appl. No. 18/690,165
Filed by Outdoor Wireless Networks LLC, Claremont, NC (US)
PCT Filed Aug. 29, 2022, PCT No. PCT/US2022/075559
§ 371(c)(1), (2) Date Mar. 7, 2024,
PCT Pub. No. WO2023/044234, PCT Pub. Date Mar. 23, 2023.
Claims priority of application No. 202111072521.4 (CN), filed on Sep. 14, 2021.
Prior Publication US 2024/0387991 A1, Nov. 21, 2024
Int. Cl. H01Q 3/34 (2006.01); H01P 1/18 (2006.01); H01Q 1/24 (2006.01); H01Q 21/26 (2006.01)
CPC H01Q 3/34 (2013.01) [H01P 1/184 (2013.01); H01Q 1/246 (2013.01); H01Q 21/26 (2013.01)] 20 Claims

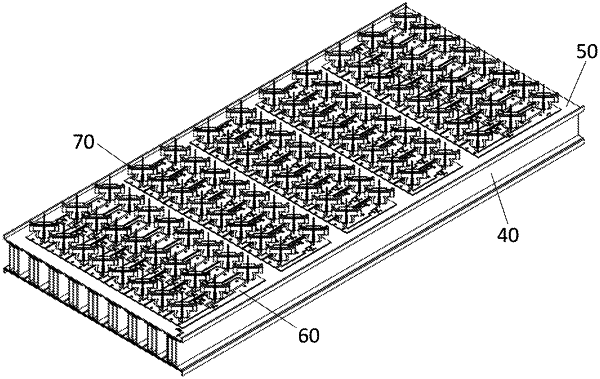

OG exemplary drawing

1. A housing for a cavity phase shifter, comprising:
a first part that extends along the longitudinal direction of the cavity phase shifter; and
a second part that is separate from the first part, and which extends along the length of the cavity phase shifter, wherein
the first part comprises a substantially flat first base and first arms that extend from the two widthwise edges of the first base toward the second part;
the second part comprises a substantially flat second base and second arms that extend from the two widthwise edges of the second base toward the first part; and
the first arms and the second arms at least partially overlap and are capacitively coupled to each other to form the first cavity of the cavity phase shifter.
