US 12,444,311 B2
Flight planning systems and methods for aircraft
Romani de Oliveira Ítalo, São José dos Campos (BR); Euclides Carlos Pinto Neto, Fredericton (CA); Stephen Solomon Altus, Campbell, CA (US); Rosa Maria Rodriguez, Madrid (ES); Pablo Costas Alvarez, Majadahonda Madrid (ES); and Manuel Polaina Morales, Munich (DE)
Assigned to The Boeing Company, Arlington, VA (US)
Filed by THE BOEING COMPANY, Chicago, IL (US)
Filed on Dec. 22, 2022, as Appl. No. 18/145,229.
Prior Publication US 2024/0212511 A1, Jun. 27, 2024
Int. Cl. G08G 5/34 (2025.01); G08G 5/21 (2025.01); G08G 5/76 (2025.01)
CPC G08G 5/34 (2025.01) [G08G 5/21 (2025.01); G08G 5/76 (2025.01)] 17 Claims

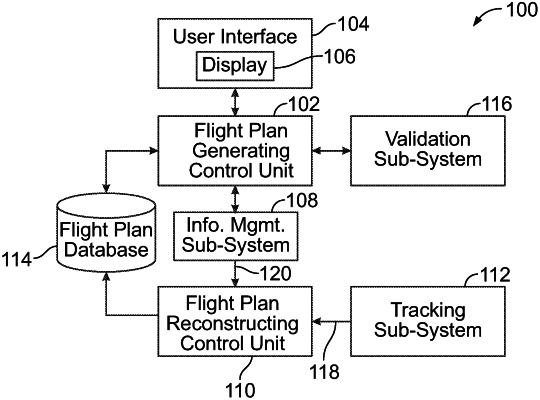

OG exemplary drawing

1. A system comprising:
an aircraft configured to travel from a departure location to an arrival location;
a user interface onboard the aircraft; and
a flight plan generating control unit including an artificial intelligence or machine learning system, wherein the flight plan generating control unit is configured to:
receive a flight plan request for the aircraft from the user interface onboard the aircraft,
determine if the flight plan request matches a flight plan within a flight plan database, wherein the flight plan includes a route between the departure location and the arrival location,
in response to the flight plan request matching the flight plan within the flight plan database, submit the flight plan to a validation sub-system, and
in response to the flight plan request not matching the flight plan within the flight plan database, determine a new flight plan via an iterative graph search.
