US 12,443,567 B2
Index node distribution and disaggregation
Adrian Michaud, Carlisle, MA (US)
Assigned to Dell Products L.P., Round Rock, TX (US)
Filed by Dell Products L.P., Round Rock, TX (US)
Filed on Oct. 25, 2023, as Appl. No. 18/494,392.
Prior Publication US 2025/0139062 A1, May 1, 2025
Int. Cl. G06F 16/182 (2019.01); G06F 16/13 (2019.01)
CPC G06F 16/182 (2019.01) [G06F 16/13 (2019.01)] 18 Claims

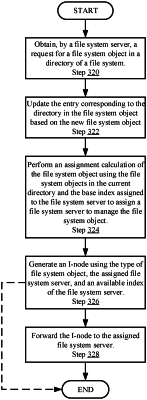

OG exemplary drawing

12. A method for managing storage of metadata, comprising:
receiving, by a first file system server of a plurality of file system servers managing a file system and from a client device, a request for a file system object of the file system;
in response to the request:
making a determination that a second file system server is to manage the file system object,
wherein the determination is based on a round-robin algorithm, and
wherein the round-robin algorithm comprises a function applied to each of a list consisting of:
a first server base index corresponding to the first file system server,
a directory index field corresponding to an index of the file system object in a directory of the file system, and
a total number of the plurality of file system servers;
based on the determination, generating an index node (I-node) associated with metadata of the file system object,
wherein the I-node comprises:
an object type field corresponding to a type of the file system object,
a second server base index field corresponding to the second file system server, and
the directory index field,
sending the I-node to the second file system server;
obtaining, from the second file system server, data associated with the file system object; and
providing the data to the client device.
