US 12,443,364 B2
Storage device for autonomous driving and operating method thereof
Seunghan Lee, Suwon-si (KR)
Assigned to SAMSUNG ELECTRONICS CO., LTD., Suwon-si (KR)
Filed by SAMSUNG ELECTRONICS CO., LTD., Suwon-si (KR)
Filed on May 3, 2024, as Appl. No. 18/654,282.
Application 18/654,282 is a continuation of application No. 17/883,214, filed on Aug. 8, 2022, granted, now 12,001,712.
Claims priority of application No. 10-2021-0158932 (KR), filed on Nov. 17, 2021; and application No. 10-2022-0040207 (KR), filed on Mar. 31, 2022.
Prior Publication US 2024/0295985 A1, Sep. 5, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. G06F 3/06 (2006.01)
CPC G06F 3/0655 (2013.01) [G06F 3/0604 (2013.01); G06F 3/0679 (2013.01)] 20 Claims

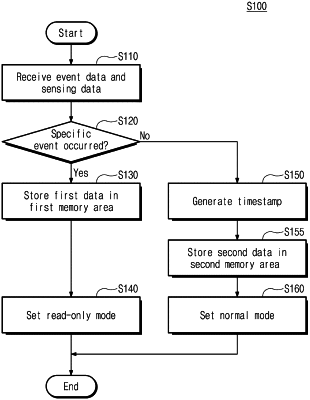

OG exemplary drawing

1. An autonomous driving vehicle comprising:
a plurality of sensors;
a processor configured to control the plurality of sensors to obtain sensing data; and
a storage device comprising a storage controller and a plurality of nonvolatile memory devices,
wherein the storage device is configured to receive event data and the sensing data from the processor, and store the sensing data one of a first memory area or a second memory area of the plurality of nonvolatile memory devices based on the event data
wherein the sensing data is stored in the first memory area based on being associated with a preset event and stored in the second memory area based on not being associated with the preset event, and
wherein the storage device is further configured to set the first memory area to read-only mode based on the sensing data being stored in the first memory area.
