US 12,442,882 B1
Wireless location device protection apparatus
Peipeng Tang, Zhejiang (CN)
Assigned to Hangzhou Yimao E-commerce Co., Ltd, Hangzhou (CN)
Filed by Hangzhou Yimao E-commerce Co., Ltd, Zhejiang (CN)
Filed on Jun. 5, 2025, as Appl. No. 19/230,046.
Claims priority of application No. 202520964590.3 (CN), filed on May 15, 2025.
Int. Cl. H04L 1/00 (2006.01); G01S 1/04 (2006.01); H01Q 1/44 (2006.01)
CPC G01S 1/04 (2013.01) [H01Q 1/44 (2013.01)] 20 Claims

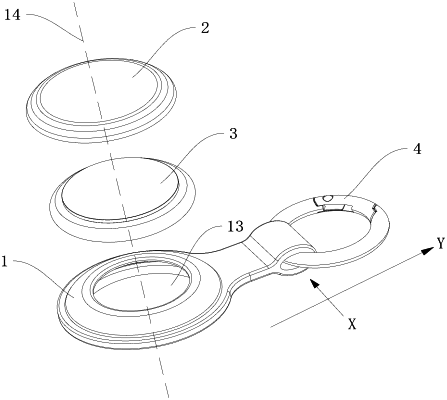

OG exemplary drawing

1. A wireless location device protection apparatus, comprising:
a protection element comprising a first base portion and a second base portion, the first base portion and the second base portion sharing a coaxial central axis, the first base portion comprising an enclosure portion and a window, the enclosure portion being gathered from a periphery of the first base portion towards the central axis, the gathered center of the enclosure portion being formed with the window;
an inner space formed by enclosing between the first base portion and the second base portion for accommodating a wireless location device;
a cover body accommodated in the inner space for covering the window;
wherein when the wireless location device is mounted to the inner space, an upper surface of the wireless location device fits with a lower surface of the cover body, and an edge of the upper surface of the cover body fits with an inner wall face of the enclosure portion to form a face contact seal.
