US 12,442,849 B2
Determining resistance in an electric circuit
Sanwal Saleem, Zagreb (HR)
Assigned to Rimac Technology LLC, Sveta Nedelja (HR)
Appl. No. 18/001,795
Filed by Rimac Technology LLC, Sveta Nedelja (HR)
PCT Filed Jun. 28, 2021, PCT No. PCT/EP2021/067661
§ 371(c)(1), (2) Date Dec. 14, 2022,
PCT Pub. No. WO2022/002836, PCT Pub. Date Jan. 6, 2022.
Claims priority of application No. 20183192 (EP), filed on Jun. 30, 2020.
Prior Publication US 2023/0236236 A1, Jul. 27, 2023
Int. Cl. G01R 31/52 (2020.01); G01R 31/12 (2020.01); G01R 31/00 (2006.01)
CPC G01R 31/1272 (2013.01) [G01R 31/52 (2020.01); G01R 31/007 (2013.01)] 11 Claims

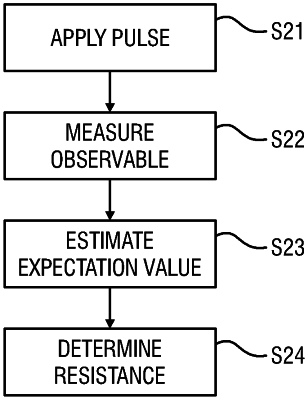

OG exemplary drawing

1. A method of determining a resistance in an electric circuit, the method comprising:
applying a voltage pulse to a test point of said electric circuit using pulse injection, said voltage pulse having a predetermined pulse duration;
measuring an electric observable at a response point of said electric circuit during at least a part of said pulse duration;
estimating during said pulse duration an expectation value from said measured electric observable by fitting measured values of the measured electrical observable to a predetermined model; and
determining said resistance from said expectation value,
wherein:
the electric observable is voltage and current; and
the predetermined model is an exponential model.
