US 12,442,502 B2
Illumination device for vehicles
Sebastian Gatsios, Arnsberg (DE); Florian Herold, Bielefeld (DE); Dirk Kliebisch, Paderborn (DE); Ingo Möllers, Rietberg (DE); Alexander Schwan, Kamen (DE); and Patrick Vogel, Unna (DE)
Assigned to Hella GmbH & Co. KGaA, Lippstadt (DE)
Filed by Hella GmbH & Co. KGaA, Lippstadt (DE)
Filed on Sep. 11, 2023, as Appl. No. 18/464,882.
Claims priority of application No. 10102022123124.0 (DE), filed on Sep. 12, 2022.
Prior Publication US 2024/0084988 A1, Mar. 14, 2024
Int. Cl. F21S 41/153 (2018.01); F21S 41/125 (2018.01); F21S 41/265 (2018.01); F21S 41/663 (2018.01); F21W 102/20 (2018.01); F21Y 113/13 (2016.01)
CPC F21S 41/153 (2018.01) [F21S 41/125 (2018.01); F21S 41/265 (2018.01); F21S 41/663 (2018.01); F21W 2102/20 (2018.01); F21Y 2113/13 (2016.08)] 13 Claims

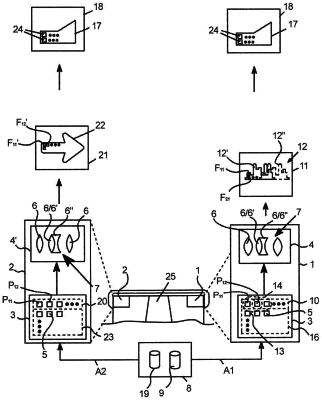

OG exemplary drawing

1. An illumination device for vehicles, the illumination device comprising:
a first headlamp and a second headlamp, each of said first and second headlamps including:
an imaging unit for generating a multitude of light pixels (P11, P12, . . . Pnm) that can be actuated individually;
a lens unit containing a lens arrangement with a number of lenses arranged in a fixed manner to each other by which the light pixels (P11, P12, . . . Pnm) of the imaging unit are mapped to focused light spots (F11, F12, F11′, F12′) at a specified distance; and
an actuator unit for actuating the imaging unit,
wherein the first headlamp is arranged in a first corner area of the vehicle and the second headlamp is arranged in a second corner area of the vehicle,
wherein the respective light pixels (P11, P12, . . . Pnm) of the imaging unit of the first headlamp and of the second headlamp are mapped to be focused at different distances.
