US 12,441,424 B2
Bicycle fork and bicycle fork system
Mario Conradt, Koblenz (DE); and Noah Hoertig, Koblenz (DE)
Assigned to Canyon Bicycles GmbH, Koblenz (DE)
Filed by Canyon Bicycles GmbH, Koblenz (DE)
Filed on Jul. 29, 2022, as Appl. No. 17/876,702.
Claims priority of application No. 20 2021 104 078.5 (DE), filed on Jul. 30, 2021.
Prior Publication US 2023/0035326 A1, Feb. 2, 2023
Int. Cl. B62J 11/13 (2020.01); B62K 19/32 (2006.01); B62K 21/02 (2006.01)
CPC B62J 11/13 (2020.02) [B62K 19/32 (2013.01); B62K 21/02 (2013.01)] 17 Claims

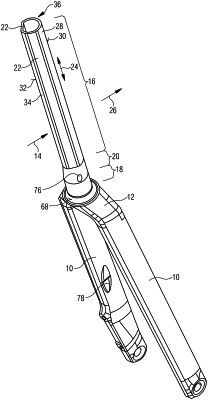

OG exemplary drawing

1. A bicycle fork comprising:
two fork legs connected with one another via a fork bridge, and
a steer tube connected with the fork bridge,
the steer tube comprising two flattened portions extending in the longitudinal direction of the steer tube and a cylindrical lower part facing the fork bridge,
wherein the lower cylindrical part is arranged to be offset and not coaxial with respect to an upper part of the steer tube having the two flattened portions.
