US 12,439,969 B2
Inductive heating arrangement with gas permeable segmented inductive heating element
Rui Nuno Batista, Neuchatel (CH); and Ricardo Cali, Mannheim (DE)
Assigned to Philip Morris Products S.A., Neuchatel (CH)
Appl. No. 17/624,429
Filed by Philip Morris Products S.A., Neuchatel (CH)
PCT Filed Jun. 25, 2020, PCT No. PCT/EP2020/067954
§ 371(c)(1), (2) Date Jan. 3, 2022,
PCT Pub. No. WO2021/001268, PCT Pub. Date Jan. 7, 2021.
Claims priority of application No. 19184533 (EP), filed on Jul. 4, 2019.
Prior Publication US 2022/0386697 A1, Dec. 8, 2022
Int. Cl. A24F 40/465 (2020.01); A24F 40/20 (2020.01); A24F 40/40 (2020.01); A24F 40/50 (2020.01); A24F 40/51 (2020.01); H01F 27/30 (2006.01); H05B 6/10 (2006.01); H05B 6/36 (2006.01); H05B 6/44 (2006.01)
CPC A24F 40/465 (2020.01) [A24F 40/20 (2020.01); H05B 6/105 (2013.01); H05B 6/44 (2013.01)] 16 Claims

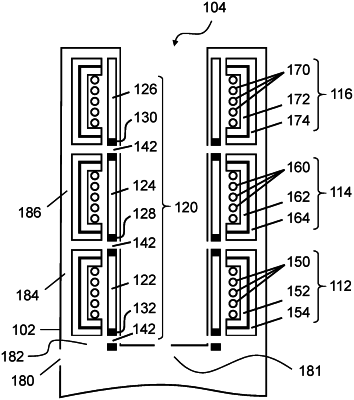

OG exemplary drawing

1. An inductive heating element for an aerosol-generating system, the inductive heating element comprising:
a cavity configured to receive an aerosol-forming substrate to be heated by the inductive heating element;
a first susceptor;
a second susceptor;
an intermediate element disposed between the first susceptor and the second susceptor, the intermediate element being gas permeable,
wherein the intermediate element comprises at least one of:
a thermally insulative material configured to thermally insulate the first susceptor from the second susceptor, and
an electrically insulative material configured to electrically insulate the first susceptor from the second susceptor; and
a flux concentrator, a portion of the flux concentrator extending into the intermediate element between the first susceptor and the second susceptor.
