US 12,439,967 B2
Vaporizer for an aerosol-generating system and vaporizing method
Michel Bessant, Carouge (CH); Fabien Duc, Neuchatel (CH); Zachary Elliott, Loughborough (GB); Robert Emmett, Neuchatel (CH); Hossein Ostadi, Derby (GB); Shaun Phillips, Peterborough (GB); Bruce Renfrew, Hilltop (GB); Eva Saade Latorre, Neuchatel (CH); and Saad Ali, Loughborough (GB)
Assigned to ALTRIA CLIENT SERVICES LLC, Richmond, VA (US)
Filed by Altria Client Services LLC, Richmond, VA (US)
Filed on Jun. 5, 2024, as Appl. No. 18/734,095.
Application 18/734,095 is a continuation of application No. 16/853,131, filed on Apr. 20, 2020, granted, now 12,022,870.
Application 16/853,131 is a continuation of application No. 15/825,330, filed on Nov. 29, 2017, granted, now 10,667,558, issued on Jun. 2, 2020.
Application 15/825,330 is a continuation of application No. PCT/EP2017/077687, filed on Oct. 27, 2017.
Claims priority of application No. 16201229 (EP), filed on Nov. 29, 2016.
Prior Publication US 2024/0315338 A1, Sep. 26, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. A24F 40/46 (2020.01); A24F 40/40 (2020.01); A24F 40/48 (2020.01); A61M 11/04 (2006.01); A61M 15/06 (2006.01); H05B 3/04 (2006.01); H05B 3/44 (2006.01); A24F 40/10 (2020.01); A61M 16/00 (2006.01); H05B 3/06 (2006.01)
CPC A24F 40/46 (2020.01) [A24F 40/40 (2020.01); A24F 40/48 (2020.01); A61M 11/042 (2014.02); A61M 15/06 (2013.01); H05B 3/04 (2013.01); H05B 3/44 (2013.01); A24F 40/10 (2020.01); A61M 2016/0024 (2013.01); A61M 2016/0027 (2013.01); A61M 2205/3334 (2013.01); A61M 2205/3633 (2013.01); A61M 2205/3653 (2013.01); A61M 2205/50 (2013.01); H05B 3/06 (2013.01); H05B 2203/021 (2013.01); H05B 2203/022 (2013.01)] 22 Claims

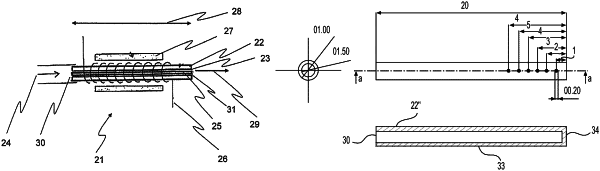

OG exemplary drawing

1. A vaporizer for an aerosol-generating system, the vaporizer comprising:
a tube element defining an inner volume configured to receive an amount of liquid aerosol-forming substrate, the tube element having a plurality of micro perforations;
a mesh in the inner volume of the tube element; and
a heater, the heater including an electrical resistive heater, and the heater is configured to heat the tube element to a temperature sufficient to volatilize at least a part of the received amount of liquid aerosol-forming substrate.
