US 12,432,867 B2
Emergency starting power supply for vehicle
Yong Liu, Guangdong (CN)
Assigned to Shenzhen Zhanpusida Technology Co., Ltd., Shenzhen (CN)
Filed by Shenzhen Zhanpusida Technology Co., Ltd., Guangdong (CN)
Filed on Oct. 30, 2024, as Appl. No. 18/931,230.
Application 18/931,230 is a continuation of application No. 18/608,984, filed on Mar. 19, 2024, granted, now 12,171,079.
Claims priority of application No. 202323131586.9 (CN), filed on Nov. 16, 2023.
Prior Publication US 2025/0169009 A1, May 22, 2025
Int. Cl. H05K 5/00 (2025.01); B60R 16/033 (2006.01); H02J 1/10 (2006.01); H05K 5/02 (2006.01); H05K 7/14 (2006.01)
CPC H05K 5/0247 (2013.01) [B60R 16/033 (2013.01); H02J 1/122 (2020.01); H05K 5/0217 (2013.01); H05K 7/1427 (2013.01)] 19 Claims

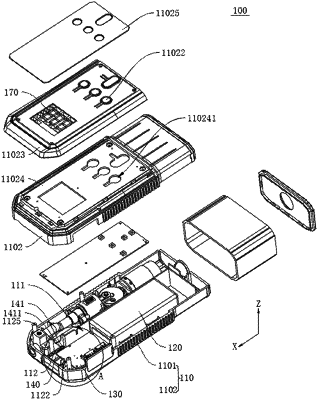

OG exemplary drawing

1. An emergency starting power supply for vehicles, comprising a shell comprising a first shell and a second shell, a power source, a circuit board, and an output terminal, wherein the first shell is provided with a first accommodating space and a first mounting part; the power source and the circuit board are housed in the first accommodating space; the power source is electrically connected to the circuit board and the output terminal, respectively; the first mounting part is provided with a second accommodating space; at least a portion of the output terminal is housed in the second accommodating space; and the output terminal is configured to output a current for starting an engine of the vehicles, wherein the circuit board, the first mounting part, and the output terminal are arranged on a same side of the power source;
wherein the second shell comprises a first sub-second shell and a second sub-second shell; the first sub-second shell is provided with a button, and the second sub-second shell is provided with a second through-hole; and when using the button, the button undergoes displacement towards the second through-hole.
