US 12,403,567 B2
Dual-function grip-mount device
Jason Begin, Roswell, GA (US)
Filed by Jason Begin, Roswell, GA (US)
Filed on Dec. 21, 2022, as Appl. No. 18/085,999.
Claims priority of provisional application 63/292,003, filed on Dec. 21, 2021.
Prior Publication US 2024/0208009 A1, Jun. 27, 2024
Int. Cl. B25B 5/16 (2006.01)
CPC B25B 5/163 (2013.01) 14 Claims

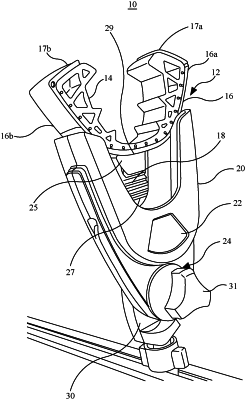

OG exemplary drawing

1. A dual function grip-mount device, comprising:
a wishbone shaped rigid housing including a cavity therein;
a flexible grip head slidable from an open position above the wishbone shaped rigid housing into a closed position nested within the cavity of the wishbone shaped rigid housing;
a ratchet strap attached to a center bottom portion of the flexible grip head and extending downward from the flexible grip head into the cavity of the wishbone shaped rigid housing; and
a ratchet release to engage the ratchet strap.
