US 12,367,005 B2
Method for displaying application image, terminal, and non-transitory computer-readable storage medium
Xuan He, Guangdong (CN); Junzheng Yang, Guangdong (CN); Jiang Zhong, Guangdong (CN); and Ruizhen Yu, Guangdong (CN)
Assigned to GUANGDONG OPPO MOBILE TELECOMMUNICATIONS CORP., LTD., Guangdong (CN)
Filed by GUANGDONG OPPO MOBILE TELECOMMUNICATIONS CORP., LTD., Guangdong (CN)
Filed on Sep. 1, 2023, as Appl. No. 18/460,257.
Application 18/460,257 is a continuation of application No. PCT/CN2022/076227, filed on Feb. 14, 2022.
Claims priority of application No. 202110262170.7 (CN), filed on Mar. 10, 2021.
Prior Publication US 2023/0409273 A1, Dec. 21, 2023
Int. Cl. G06F 3/14 (2006.01); G06F 3/16 (2006.01)
CPC G06F 3/1454 (2013.01) [G06F 3/165 (2013.01)] 19 Claims

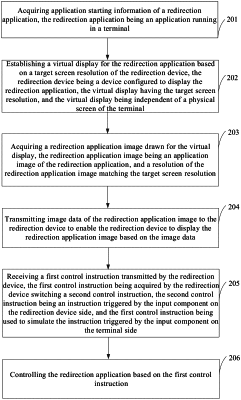

OG exemplary drawing

1. A method for displaying an application image, performed by a terminal, the method comprising:
acquiring application starting information of a redirection application, the redirection application being an application running in the terminal;
establishing a virtual display for the redirection application based on a target screen resolution of the redirection device, the redirection device being a device configured to display the redirection application, the virtual display having the target screen resolution, and the virtual display being independent of a physical screen of the terminal;
acquiring a redirection application image drawn for the virtual display, the redirection application image being an application image of the redirection application, and a resolution of the redirection application image matching the target screen resolution; and
transmitting image data of the redirection application image to the redirection device to enable the redirection device to display the redirection application image based on the image data,
wherein after the transmitting image data of the redirection application image to the redirection device, the method comprises:
receiving a first control instruction transmitted by the redirection device, the first control instruction being acquired by the redirection device switching a second control instruction, the second control instruction being an instruction triggered by an input component of the redirection device, and the first control instruction being used to simulate an instruction triggered by an input component of the terminal; and
controlling the redirection application based on the first control instruction.
