US 12,288,052 B2
Method for creating private image in public cloud and related device
Sibiao Luo, Beijing (CN)
Assigned to HUAWEI CLOUD COMPUTING TECHNOLOGIES CO., LTD., Guizhou (CN)
Filed by Huawei Cloud Computing Technologies Co., Ltd., Guizhou (CN)
Filed on Apr. 28, 2023, as Appl. No. 18/140,759.
Application 18/140,759 is a continuation of application No. PCT/CN2021/127688, filed on Oct. 29, 2021.
Claims priority of application No. 202011195100.6 (CN), filed on Oct. 30, 2020.
Prior Publication US 2023/0266958 A1, Aug. 24, 2023
Int. Cl. G06F 8/61 (2018.01); G06F 9/4401 (2018.01); G06F 9/445 (2018.01)
CPC G06F 8/63 (2013.01) [G06F 9/4401 (2013.01); G06F 9/44505 (2013.01)] 18 Claims

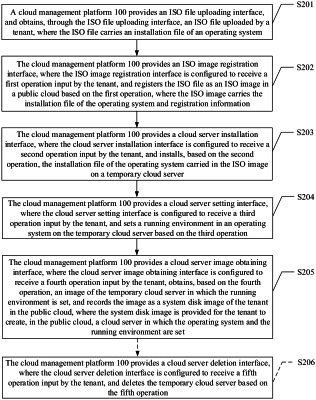

OG exemplary drawing

1. A method for creating a private image in a public cloud, wherein the method is used for a cloud management platform on a network side, and the method comprises:
providing an isolation (ISO) file uploading interface, and obtaining, through the ISO file uploading interface, an ISO file uploaded by a tenant, wherein the ISO file carries an installation file of an operating system;
providing an ISO image registration interface, wherein the ISO image registration interface is configured to receive a first operation input by the tenant, and registering the ISO file as an ISO image in the public cloud based on the first operation, wherein the ISO image carries the installation file of the operating system and registration information;
providing a cloud server installation interface, wherein the cloud server installation interface is configured to receive a second operation input by the tenant, and installing, based on the second operation by using the installation file, the operating system carried in the ISO image on a temporary cloud server;
providing a cloud server setting interface, wherein the cloud server setting interface is configured to receive a third operation input by the tenant, and setting a running environment in an operating system on the temporary cloud server based on the third operation; and
providing a cloud server image obtaining interface, wherein the cloud server image obtaining interface is configured to receive a fourth operation input by the tenant, obtaining, based on the fourth operation, an image of the temporary cloud server in which the running environment is set, and recording the image as a system disk image of the tenant in the public cloud, wherein the system disk image is provided for the tenant to create, in the public cloud, a cloud server in which the operating system and the running environment are set.
