US 12,266,451 B2
AI movement-tracing apparatus of infected asymptomatic people and method using the same
Jae-Chern Yoo, Suwon-si (KR)
Assigned to Research & Business Foundation Sungkyunkwan University, Suwon-si (KR)
Filed by RESEARCH & BUSINESS FOUNDATION SUNGKYUNKWAN UNIVERSITY, Suwon-si (KR)
Filed on Feb. 16, 2022, as Appl. No. 17/673,262.
Claims priority of application No. 10-2021-0024156 (KR), filed on Feb. 23, 2021.
Prior Publication US 2022/0270765 A1, Aug. 25, 2022
Int. Cl. G16H 50/80 (2018.01); G06T 7/00 (2017.01); G06V 40/12 (2022.01); G10L 15/16 (2006.01); G10L 15/22 (2006.01); G10L 15/28 (2013.01); G10L 25/51 (2013.01); H04N 5/33 (2023.01); H04W 4/029 (2018.01)
CPC G16H 50/80 (2018.01) [G06T 7/0012 (2013.01); G06V 40/1365 (2022.01); G10L 15/16 (2013.01); G10L 15/22 (2013.01); G10L 15/28 (2013.01); G10L 25/51 (2013.01); H04N 5/33 (2013.01); H04W 4/029 (2018.02); G06T 2207/10048 (2013.01); G06T 2207/30004 (2013.01); G06T 2207/30196 (2013.01); G10L 2015/223 (2013.01); G10L 2015/225 (2013.01)] 20 Claims

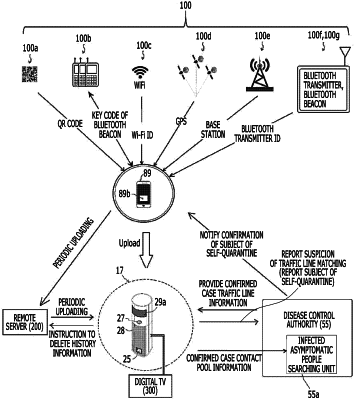

OG exemplary drawing

1. An artificial intelligence-infected asymptomatic people movement-tracing apparatus, comprising:
a digital communication module which is separate from a cellular phone of a tracing target and is installed in one region in a residence of the tracing target and provides communication with a disease control authority terminal or wireless communication connection with the cellular phone of the tracing target;
a traffic line matching determining circuitry which compares confirmed case traffic line information and tracing target traffic line information to find out whether there is a route in which confirmed case traffic line information and tracing target traffic line information overlap;
a controller which selects the tracing target as a subject of self-quarantine when there is a route in which the confirmed case traffic line information and the tracing target traffic line information overlap and controls driving of the digital communication module to provide information about the selected subject of self-quarantine to the disease control authority terminal;
a confirmed case contact pool which is installed in the disease control authority terminal, from among a plurality of traffic line information of the cellular phone of the tracing target provided, to store only the traffic line information of the tracing target that overlaps the traffic line information of each confirmed case;
an infected asymptomatic people searching circuitry which finds infected asymptomatic people by discovering an intersection between different confirmed case contact pools; and
an infection route tracking circuitry which backwardly tracks the confirmed case contact pool to find out the infection route on the basis of information of the infected asymptomatic people included in the intersection.
