US 12,262,808 B2
Keyboard-attached device stand
Jean-Marc Flueckiger, Hong Kong (CN); Kexin Yang, Shanghai (CN); Jinjun Xia, Suzhou (CN); Francesco Pozzato, Hong Kong (CN); and Ming Feng Hsieh, Taipei (TW)
Assigned to Logitech Europe S.A., Lausanne (CH)
Filed by Logitech Europe S.A., Lausanne (CH)
Filed on Jul. 28, 2022, as Appl. No. 17/875,928.
Prior Publication US 2024/0032687 A1, Feb. 1, 2024
Int. Cl. A47B 23/04 (2006.01)
CPC A47B 23/04 (2013.01) [A47B 2023/049 (2013.01)] 18 Claims

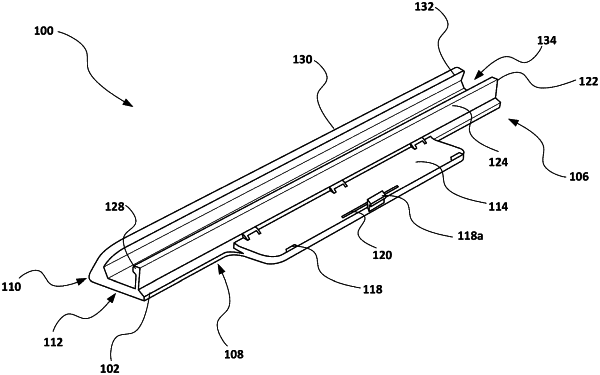

OG exemplary drawing

1. A device stand, comprising:
a base comprising a support portion and a connector portion, wherein an upper surface of the connector portion comprises at least one hooked protrusion extending along only a portion of a width of the base, that is configured to engage with a corresponding recess of a keyboard housing to secure the base with the keyboard housing;
a first support member coupled with the support portion;
a second support member coupled with the support portion and laterally spaced apart from the first support member to form a channel between the first support member and the second support member, wherein the channel is sized to receive a computing device; and
wherein a rear surface of the first support member comprises a nub that protrudes laterally from the rear surface.
