US 12,253,669 B2
Time-sequential MEMS projector
Daniel Adema, Kitchener (CA)
Assigned to GOOGLE LLC, Mountain View, CA (US)
Filed by GOOGLE LLC, Mountain View, CA (US)
Filed on Nov. 19, 2021, as Appl. No. 17/530,782.
Claims priority of provisional application 63/116,341, filed on Nov. 20, 2020.
Prior Publication US 2022/0163790 A1, May 26, 2022
Int. Cl. G02B 26/10 (2006.01); G02B 26/08 (2006.01); G02B 27/01 (2006.01)
CPC G02B 26/105 (2013.01) [G02B 26/0833 (2013.01); G02B 27/0172 (2013.01)] 12 Claims

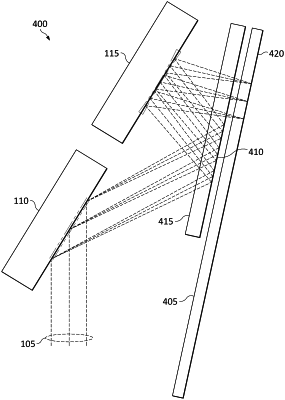

OG exemplary drawing

1. A near-eye display system comprising:
a waveguide having an incoupler (IC); and
multiple micro-electromechanical system (MEMS) mirrors in series to receive collimated light and direct the light to one or more input angles at a point or a line at the IC independent of an optical relay, wherein an initial MEMS mirror and a second MEMS mirror in the series are co-planar and the scanned light generated by the initial MEMS mirror reflects off a reflective surface of the waveguide to the second MEMS mirror.
