US 12,239,434 B2
Near-field positioning device
Liesbeth Gommé, Anderlecht (BE); and Anthony Kerselaers, Herselt (BE)
Assigned to NXP B.V., Eindhoven (NL)
Filed by NXP B.V., Eindhoven (NL)
Filed on Jul. 9, 2021, as Appl. No. 17/371,442.
Prior Publication US 2023/0014117 A1, Jan. 19, 2023
Int. Cl. A61B 5/107 (2006.01); G01S 11/06 (2006.01)
CPC A61B 5/107 (2013.01) [G01S 11/06 (2013.01)] 17 Claims

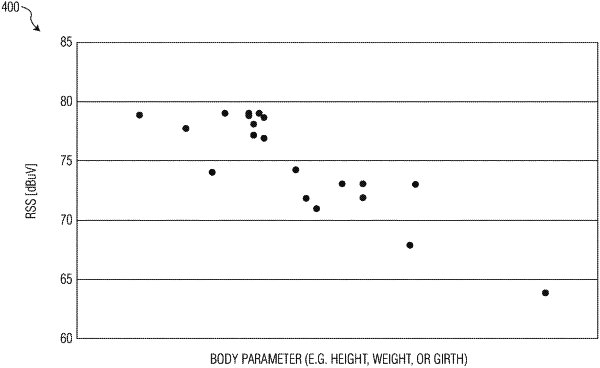

OG exemplary drawing

1. A near-field positioning device, comprising:
an input interface configured to receive a set of body-parameters from a user;
a controller configured to generate a set of recommended positions for a set of near-field wireless devices to be coupled to the user based on the body-parameters; and
an output interface configured to output the set of recommended positions;
wherein the controller is configured to receive from the input interface a fixed position for a first one of the set of near-field wireless devices; and
wherein the controller is configured to select a recommended position for a second one of the set of near-field wireless devices from the set of recommended positions that have a near-field channel loss less than a maximum channel loss.
