US 12,233,987 B2
Human-powered vehicle control system and human-powered vehicle transmission device
Akihiro Nozaki, Sakai (JP); and Hiroko Matsubayashi, Sakai (JP)
Assigned to SHIMANO INC., Sakai (JP)
Filed by SHIMANO INC., Sakai (JP)
Filed on Feb. 15, 2024, as Appl. No. 18/443,205.
Claims priority of application No. 2023-030817 (JP), filed on Mar. 1, 2023.
Prior Publication US 2024/0294228 A1, Sep. 5, 2024
Int. Cl. B62M 9/122 (2010.01); B62J 43/30 (2020.01); B62M 6/45 (2010.01); B62M 6/55 (2010.01); B62M 6/90 (2010.01); B62M 25/08 (2006.01); B62J 50/22 (2020.01); B62M 9/132 (2010.01)
CPC B62M 9/122 (2013.01) [B62J 43/30 (2020.02); B62M 6/45 (2013.01); B62M 6/55 (2013.01); B62M 6/90 (2013.01); B62M 25/08 (2013.01); B62J 50/22 (2020.02); B62M 9/132 (2013.01)] 20 Claims

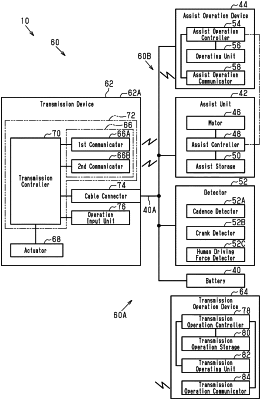

OG exemplary drawing

1. A human-powered vehicle control system comprising:
a transmission device;
a transmission operation device configured to operate the transmission device;
the transmission operation device including transmission operation controller circuitry configured to transmit a first command to an assist operation device of a human-powered vehicle through wireless communication, the human-powered vehicle including an assist unit and the assist operation device, the assist unit being configured to assist in propulsion of the human-powered vehicle, the assist operation device including an operating unit, the assist operation device being configured to transmit an operation signal to the assist unit through wired communication in a case where the operating unit is operated by a user;
the transmission device including first communicator circuitry, an actuator, and transmission controller circuitry, the first communicator circuitry being configured to receive a first shift command transmitted from the assist operation device in a case where the assist operation device receives the first command;
the actuator being configured to perform a shifting action; and
the transmission controller circuitry being configured to control the actuator so that the actuator performs the shifting action in response to the first shift command.
