US 12,232,166 B2
Narrowband random access channel occasions
Iyab Issam Sakhnini, San Diego, CA (US); and Tao Luo, San Diego, CA (US)
Assigned to QUALCOMM Incorporated, San Diego, CA (US)
Filed by QUALCOMM Incorporated, San Diego, CA (US)
Filed on May 11, 2021, as Appl. No. 17/317,582.
Prior Publication US 2022/0369365 A1, Nov. 17, 2022
Int. Cl. H04W 74/00 (2009.01); H04W 8/24 (2009.01); H04W 72/02 (2009.01); H04W 72/0453 (2023.01); H04W 74/0833 (2024.01)
CPC H04W 74/002 (2013.01) [H04W 8/24 (2013.01); H04W 72/02 (2013.01); H04W 72/0453 (2013.01); H04W 74/0841 (2013.01)] 24 Claims

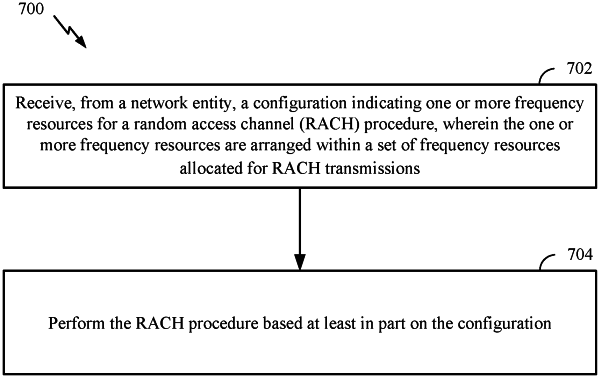

OG exemplary drawing

1. An apparatus for wireless communication by a user equipment (UE), comprising:
one or more processors individually or collectively configured to execute instructions stored on one or more memories and to cause the UE to:
receive, from a network entity, a narrowband random access channel (RACH) configuration indicating one or more narrowband frequency resources, for a RACH procedure, that are arranged within a set of frequency resources allocated for RACH transmissions for non-narrowband UEs, wherein:
the one or more narrowband frequency resources have a bandwidth that is in compliance with a capability of the user equipment;
the capability supports a first carrier bandwidth for a first frequency range and a second carrier bandwidth for a second frequency range;
the narrowband RACH configuration includes:
a number of the one or more narrowband frequency resources; and
an offset between a starting point of the one or more narrowband frequency resources and a lowest frequency of the set of frequency resources allocated for RACH transmissions for the non-narrowband UEs; and
perform the RACH procedure based at least in part on the narrowband RACH configuration.
