US 12,231,569 B2
Systems and methods for peer-to-peer single use access token
Michael J. Rojas, North Canton, OH (US)
Assigned to AXS Group LLC, Los Angeles, CA (US)
Filed by AXS Group LLC, Los Angeles, CA (US)
Filed on Mar. 6, 2023, as Appl. No. 18/178,749.
Prior Publication US 2024/0305463 A1, Sep. 12, 2024
Int. Cl. H04L 9/32 (2006.01); H03M 13/15 (2006.01)
CPC H04L 9/3228 (2013.01) [H03M 13/152 (2013.01); H04L 9/3213 (2013.01); H04L 9/3236 (2013.01)] 23 Claims

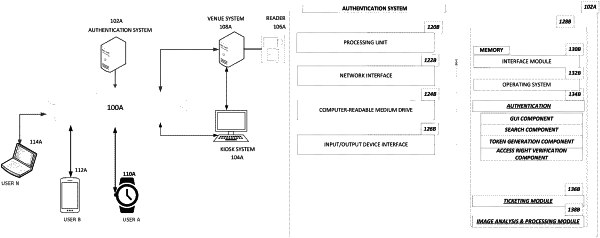

OG exemplary drawing

1. A computer-implemented method of electronically generating a time-limited one-use access token comprising encrypted and/or hashed identifiers, the method comprising:
receiving, at a computer system from a user at a first venue of a first event, a request, for a one-use optical token;
receiving at the computer system an electronic address from the user at the first venue of the first event, the electronic address purported to be associated with an access right acquired remote from the first venue for the first event at the first venue;
performing a search of a database for a record associated with the electronic address;
at least partly in response to identifying a first record associated with the electronic address, determining if the first record is associated with the access right for the first event;
at least partly in response to determining the first record is associated with the access right for the first event, generating a token comprising a computer readable optical code comprising a device identifier, a user identifier, and a timestamp wherein the device identifier and the user identifier are encrypted using a first key;
determining an expiration time associated with the token comprising the computer readable optical code comprising the device identifier, the user identifier, and the timestamp, wherein the device identifier and the user identifier are encrypted using the first key, and wherein the readable optical code does not include a ticket, a venue identifier, or an event identifier;
determining a seat associated with the first record;
while the first user is at the venue, transmitting, using a messaging service to the electronic address, the expiration time, a seat identifier corresponding to the seat associated with the first record, the token, the token comprising the computer readable optical code comprising the device identifier, the user identifier, and the timestamp wherein the device identifier and the user identifier are encrypted using the first key, wherein the electronic address is accessible by a first device of the first user;
reading using an optical reader, from a display of the first device, the token comprising the computer readable optical code comprising the device identifier and the user identifier, wherein the device identifier and the user identifier are encrypted using the first key;
decrypting, using a second key, the encrypted device identifier and the user identifier; and
determining whether the decrypted device identifier and the user identifier correspond to that in the first record;
at least partly in response to determining that the decrypted device identifier and the user identifier correspond to that in the first record, transmitting a command causing an access granted indicator to be presented by a venue device.
