US 12,226,584 B2
Respiratory pressure treatment system
Andrew Roderick Bath, Sydney (AU); Mark Bertinetti, Sydney (AU); Paul Frederick Birchall, Sydney (AU); Tommy Chung Yeung Chui, Sydney (AU); Dawn Rosemary Churchill, Sydney (AU); Clementine Le Loc'h, Sydney (AU); Justin John Formica, Sydney (AU); Matthew Rolf Harrington, Gosford (AU); Ronald James Huby, Sydney (AU); Jeegarkumar Kapadia, Sydney (AU); Barton John Kenyon, Sydney (AU); Dimitri Marco Maurer, Gosford (AU); Saad Nasr, Sydney (AU); Joseph Samuel Ormrod, Sydney (AU); Jose Ignacio Romagnoli, Sydney (AU); Nathan John Row, Sydney (AU); Ian Malcolm Smith, Sydney (AU); Robert John Sparrow, Sydney (AU); Luke Andrew Stanislas, Sydney (AU); Zhuo Ran Tang, Sydney (AU); Ernie Wei-Chih Tsai, Sydney (AU); Hargopal Verma, Sydney (AU); and Chengwei Zhu, Sydney (AU)
Assigned to ResMed Pty Ltd, Bella Vista (AU)
Filed by ResMed Pty Ltd, Bella Vista (AU)
Filed on Jul. 28, 2023, as Appl. No. 18/361,444.
Application 18/361,444 is a continuation of application No. 16/853,812, filed on Apr. 21, 2020, granted, now 11,759,595.
Application 16/853,812 is a continuation of application No. 15/104,789, abandoned, previously published as PCT/AU2014/050426, filed on Dec. 17, 2014.
Claims priority of provisional application 61/987,245, filed on May 1, 2014.
Claims priority of application No. 2013904923 (AU), filed on Dec. 17, 2013; application No. 2014901997 (AU), filed on May 27, 2014; application No. 2014901998 (AU), filed on May 27, 2014; application No. 2014901999 (AU), filed on May 27, 2014; and application No. 2014902071 (AU), filed on May 30, 2014.
Prior Publication US 2024/0024612 A1, Jan. 25, 2024
Int. Cl. A61M 16/00 (2006.01); A61M 16/06 (2006.01); A61M 16/08 (2006.01); A61M 16/10 (2006.01); A61M 16/16 (2006.01); H01Q 1/38 (2006.01); H01Q 1/48 (2006.01)
CPC A61M 16/109 (2014.02) [A61M 16/0066 (2013.01); A61M 16/024 (2017.08); A61M 16/0683 (2013.01); A61M 16/0875 (2013.01); A61M 16/16 (2013.01); A61M 16/0063 (2014.02); A61M 16/1055 (2013.01); A61M 16/107 (2014.02); A61M 2205/14 (2013.01); A61M 2205/3584 (2013.01); A61M 2205/3592 (2013.01); A61M 2205/42 (2013.01); A61M 2205/50 (2013.01); A61M 2205/505 (2013.01); A61M 2205/7518 (2013.01); A61M 2209/08 (2013.01); H01Q 1/38 (2013.01); H01Q 1/48 (2013.01)] 21 Claims

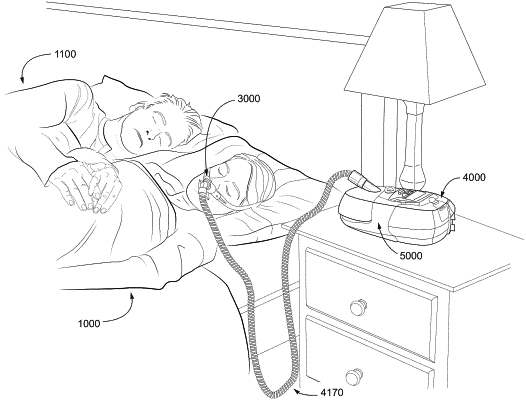

OG exemplary drawing

1. A respiratory pressure therapy (RPT) device for pressurising air to treat a respiratory disorder in a patient, the RPT device comprising:
a water reservoir comprising a water reservoir lid and a water reservoir base pivotably connected to the water reservoir lid, the water reservoir base being configured to retain water for humidification of pressurised air;
a chassis comprising a dock configured to removably receive the water reservoir;
an RPT device inlet configured to receive ambient air;
an RPT device outlet configured to be connected to an air delivery conduit to direct pressurised air to a patient interface worn by the patient during use;
a blower assembly supported within the chassis and comprising:
a first wall portion and a second wall portion;
a blower assembly inlet tube positioned on the first wall portion and configured to receive air from the RPT device inlet;
a plurality of flow tubes positioned on the second wall portion;
a first chamber formed at least partly by the second wall portion;
a second chamber formed at least partly by the second wall portion and opposite the first chamber relative to the second wall portion;
a blower configured to pressurize the air, the blower having a blower inlet exposed to the second chamber and a blower outlet; and
a blower assembly outlet configured to direct pressurized air to the water reservoir; and
an external housing that encloses the blower assembly and at least partially encloses the water reservoir when removably received by the dock.
