US 12,217,335 B2
Method and apparatus for acquiring CBCT image based on adaptive sampling
Ho Lee, Seoul (KR); and Ik Jae Lee, Seoul (KR)
Assigned to UIF (University Industry Foundation), Yonsei University, Seoul (KR)
Filed by UIF (University Industry Foundation), Yonsei University, Seoul (KR)
Filed on Jul. 13, 2022, as Appl. No. 17/812,289.
Claims priority of application No. 10-2021-0094913 (KR), filed on Jul. 20, 2021.
Prior Publication US 2023/0030889 A1, Feb. 2, 2023
Int. Cl. G06T 11/00 (2006.01); A61B 6/03 (2006.01)
CPC G06T 11/005 (2013.01) [A61B 6/032 (2013.01); G06T 11/006 (2013.01); G06T 2210/41 (2013.01); G06T 2211/424 (2013.01)] 11 Claims

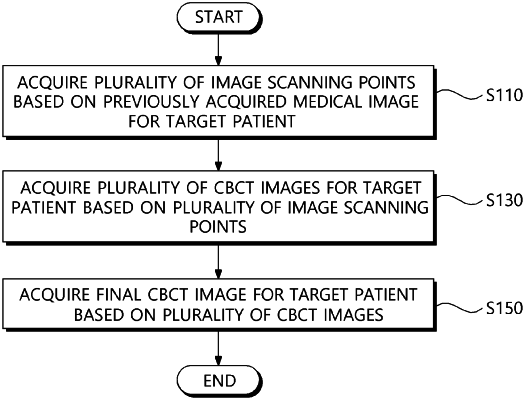

OG exemplary drawing

1. A CBCT image acquiring method based on adaptive sampling, comprising:
a step of acquiring a plurality of image scanning points based on a previously acquired medical image for a target patient, by acquiring an image for every image scanning point based on the medical image, sorting images for image scanning points based on a quantitative value for each of images for image scanning points, selecting a plurality of images according to a predetermined criterion, among sorted images for image scanning points, and acquiring the image scanning points corresponding to the plurality of selected images as the plurality of image scanning points;
a step of acquiring a plurality of cone beam computed tomography (CBCT) images for the target patient based on the plurality of image scanning points; and
a step of acquiring a final CBCT image for the target patient based on the plurality of CBCT images.
