US D1,058,791 S
Ventilator frame
Tsung-Yin Lee, Taoyuan (TW); Ching-Mei Chiu, Taoyuan (TW); and Cheng-Wei Yan, Taoyuan (TW)
Assigned to Delta Electronics, Inc., Taoyuan (TW)
Filed by Delta Electronics, Inc., Taoyuan (TW)
Filed on Jun. 8, 2022, as Appl. No. 29/841,784.
Term of patent 15 Years
LOC (15) Cl. 23 - 03
U.S. Cl. D23—411

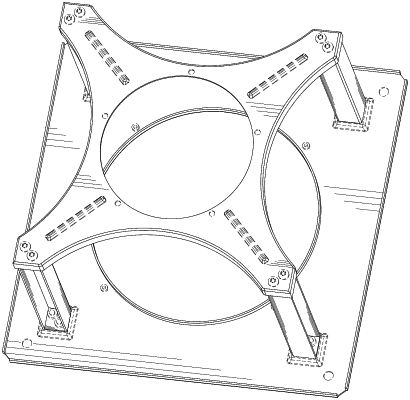

OG exemplary drawing

The ornamental design for a ventilator frame as shown and described.
