US D1,058,622 S
Cutting insert for machine tools for metalworking
Seung Ju Choi, Cheongju-si (KR); Nam Seon Lee, Cheongju-si (KR); and Sang Yong Lee, Cheongju-si (KR)
Filed by KORLOY INC., Seoul (KR)
Filed on Jun. 20, 2023, as Appl. No. 35/518,957.
Claims priority of application No. 30-2023-0010834 (KR), filed on Mar. 23, 2023.
Int. Filing Date Jun. 20, 2023
Int. Reg. No. DM/232811
Int. Reg. Date Jun. 20, 2023
Int. Reg. Pub. Date Nov. 10, 2023
Term of patent 15 Years
LOC (15) Cl. 15 - 09
U.S. Cl. D15—139

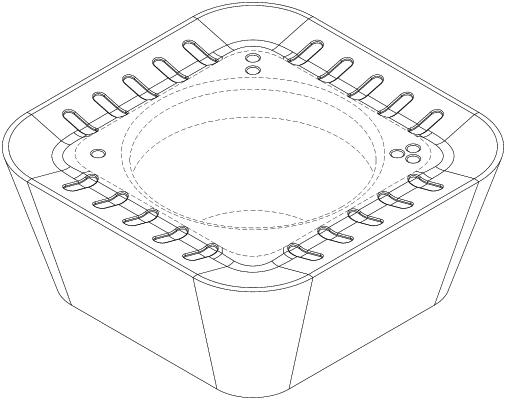

OG exemplary drawing

The ornamental design for a cutting insert for machine tools for metalworking as shown and described.
