US 12,207,552 B2
Thermal radiation sensor comprising an ionic conductor
Baoling Huang, Hong Kong (HK); Cheng Chi, Hong Kong (HK); and Gongze Liu, Hong Kong (HK)
Assigned to THE HONG KONG UNIVERSITY OF SCIENCE AND TECHNOLOGY, Kowloon (HK)
Filed by The Hong Kong University of Science and Technology, Kowloon (HK)
Filed on Feb. 18, 2022, as Appl. No. 17/675,219.
Claims priority of provisional application 63/153,959, filed on Feb. 26, 2021.
Prior Publication US 2022/0278264 A1, Sep. 1, 2022
Int. Cl. H10N 10/17 (2023.01); H10N 10/01 (2023.01)
CPC H10N 10/17 (2023.02) [H10N 10/01 (2023.02)] 20 Claims

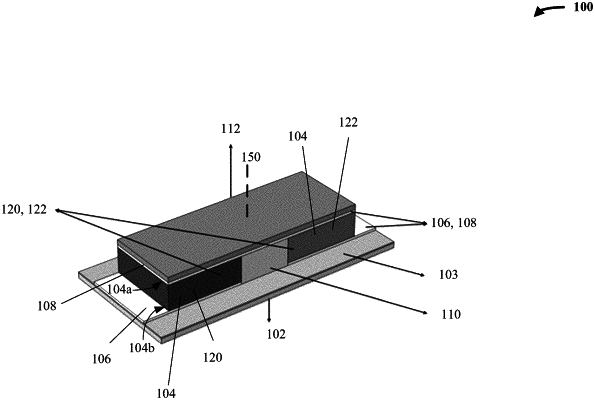

OG exemplary drawing

1. An ionic thermoelectric thermal radiation sensor, comprising:
a substrate;
an ionic thermoelectric sensing unit arranged on the substrate and comprising ionically conductive and electrically insulating material, wherein the ionic thermoelectric sensing unit is a voltage-producing unit having a first surface and a second surface spaced apart from and disposed opposite to one another, wherein the ionic thermoelectric sensing unit is configured to produce voltage via thermal diffusion of ions or via the Soret effect under a temperature difference between the first and second surfaces,
wherein the ionic thermoelectric sensing unit comprises a pair of elements spaced apart from one another along the substrate, and
wherein the pair of elements comprises a first element comprising a negative type thermoelectric material and a second element comprising a positive type thermoelectric material;
a thermal radiation absorber applied to at least one element of the pair of elements of the ionic thermoelectric sensing unit, wherein the thermal radiation absorber is configured to generate heat when exposed to thermal radiation, including infrared radiation;
a first electrical connector that connects respective first surface portions of a first surface of the pair of elements and a second electrical connector that connects respective second surface portions of a second surface of the pair of elements,
wherein the first electrical connector is disposed between the respective first surface portions and the thermal radiation absorber, and
wherein the thermal radiation absorber and the substrate are spaced apart from one another by the pair of elements; and
a support positioned to support the first electrical connector opposite the substrate,
wherein the support extends between the pair of elements and between the first electrical connector and the substrate, and
wherein the support is comprised of the negative type thermoelectric material or the support is comprised of the positive type thermoelectric material.
