US 12,207,448 B2
Airflow guiding mechanism and electronic device
Yu-Chia Cheng, New Taipei (TW); and Chien-Hsiang Chueh, New Taipei (TW)
Assigned to Wistron Corporation, New Taipei (TW)
Filed by Wistron Corporation, New Taipei (TW)
Filed on Apr. 1, 2022, as Appl. No. 17/711,063.
Claims priority of application No. 111105293 (TW), filed on Feb. 14, 2022.
Prior Publication US 2023/0262944 A1, Aug. 17, 2023
Int. Cl. G06F 1/16 (2006.01); G06F 1/18 (2006.01); G06F 1/20 (2006.01); H05K 5/00 (2006.01); H05K 7/00 (2006.01); H05K 7/20 (2006.01)
CPC H05K 7/20618 (2013.01) [G06F 1/181 (2013.01); G06F 1/20 (2013.01); H05K 7/20554 (2013.01); G06F 1/183 (2013.01)] 9 Claims

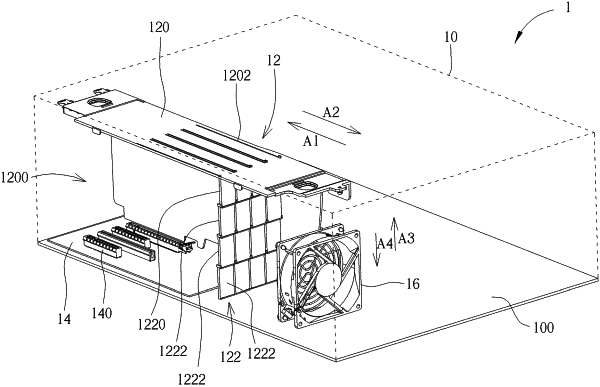

OG exemplary drawing

1. An airflow guiding mechanism comprising:
a housing comprising an airflow guiding portion and a guiding track; and
a shielding assembly movably connected to the guiding track, the shielding assembly being able to move within the airflow guiding portion along the guiding track;
wherein the shielding assembly comprises an engaging structure, an elastic connecting portion and an abutting portion, the elastic connecting portion connects the engaging structure and the abutting portion, and the engaging structure is movably engaged with the guiding track.
