US 12,207,329 B2
Multi-link device (MLD) association
Young Hoon Kwon, Laguna Niguel, CA (US); Liwen Chu, San Ramon, CA (US); and Hongyuan Zhang, Fremont, CA (US)
Assigned to NXP USA, Inc., Austin, TX (US)
Filed by NXP USA, Inc., Austin, TX (US)
Filed on Feb. 2, 2022, as Appl. No. 17/649,715.
Claims priority of provisional application 63/145,022, filed on Feb. 3, 2021.
Prior Publication US 2022/0248489 A1, Aug. 4, 2022
Int. Cl. H04W 76/15 (2018.01); H04W 84/12 (2009.01)
CPC H04W 76/15 (2018.02) [H04W 84/12 (2013.01)] 21 Claims

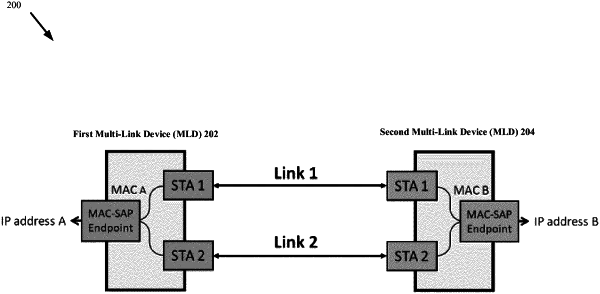

OG exemplary drawing

1. A first multi-link device (MLD) within a wireless local area network (WLAN), comprising:
a controller configured to receive a multi-link setup request for the first MLD to associate with a second MLD on a transmitted link within a first set of PHY-layer links;
wherein the controller is configured to transmit a response to the second MLD on a non-transmitted link within a second set of PHY-layer links; and
wherein the response associates the first MLD with the second MLD on the non-transmitted link within the second set of PHY-layer links.
