US 12,207,119 B1
Systems, methods, and devices for automatic signal detection with temporal feature extraction within a spectrum
David William Kleinbeck, Lees Summit, MO (US); Ronald C. Dzierwa, Baltimore, MD (US); and Daniel Carbajal, Severna Park, MD (US)
Assigned to Digital Global Systems, Inc., Tysons Corner, VA (US)
Filed by Digital Global Systems, Inc., Tysons Corner, VA (US)
Filed on Oct. 18, 2024, as Appl. No. 18/920,175.
Application 18/920,175 is a continuation of application No. 18/633,955, filed on Apr. 12, 2024, granted, now 12,160,762.
Application 18/633,955 is a continuation of application No. 18/525,017, filed on Nov. 30, 2023, granted, now 11,991,547, issued on May 21, 2024.
Application 18/525,017 is a continuation of application No. 18/351,949, filed on Jul. 13, 2023, granted, now 11,838,780, issued on Dec. 5, 2023.
Application 18/351,949 is a continuation of application No. 18/116,620, filed on Mar. 2, 2023, granted, now 11,706,651, issued on Jul. 18, 2023.
Application 18/116,620 is a continuation of application No. 17/387,570, filed on Jul. 28, 2021, granted, now 11,601,833, issued on Mar. 7, 2023.
Application 17/387,570 is a continuation of application No. 16/863,422, filed on Apr. 30, 2020, granted, now 11,082,870, issued on Aug. 3, 2021.
Application 16/863,422 is a continuation of application No. 16/388,002, filed on Apr. 18, 2019, granted, now 10,645,601, issued on May 5, 2020.
Application 16/388,002 is a continuation of application No. 15/681,558, filed on Aug. 21, 2017, granted, now 10,271,233, issued on Apr. 23, 2019.
Application 15/681,558 is a continuation in part of application No. 15/478,916, filed on Apr. 4, 2017, abandoned.
Application 15/681,558 is a continuation in part of application No. 15/412,982, filed on Jan. 23, 2017, granted, now 10,122,479, issued on Nov. 6, 2018.
Application 15/478,916 is a continuation in part of application No. 14/934,808, filed on Nov. 6, 2015, abandoned.
Application 14/934,808 is a continuation of application No. 14/504,836, filed on Oct. 2, 2014, granted, now 9,185,591, issued on Nov. 10, 2015.
Application 14/504,836 is a continuation of application No. 14/331,706, filed on Jul. 15, 2014, granted, now 8,977,212, issued on Mar. 10, 2015.
Application 14/331,706 is a continuation in part of application No. 14/086,875, filed on Nov. 21, 2013, granted, now 8,798,548, issued on Aug. 5, 2014.
Application 14/086,875 is a continuation in part of application No. 14/082,873, filed on Nov. 18, 2013, granted, now 8,805,291, issued on Aug. 12, 2014.
Application 14/086,875 is a continuation in part of application No. 14/082,916, filed on Nov. 18, 2013, granted, now 8,780,968.
Application 14/086,875 is a continuation in part of application No. 14/082,930, filed on Nov. 18, 2013, granted, now 8,824,536.
Application 14/082,916 is a continuation of application No. 13/912,893, filed on Jun. 7, 2013, granted, now 9,078,162, issued on Jul. 7, 2015.
Application 14/082,873 is a continuation of application No. 13/912,683, filed on Jun. 7, 2013, granted, now 9,288,683, issued on Mar. 15, 2016.
Application 14/082,930 is a continuation of application No. 13/913,013, filed on Jun. 7, 2013, granted, now 9,622,041, issued on Apr. 11, 2017.
Claims priority of provisional application 61/789,758, filed on Mar. 15, 2013.
Int. Cl. H04W 24/08 (2009.01); H04B 17/20 (2015.01); H04B 17/23 (2015.01); H04B 17/26 (2015.01); H04B 17/27 (2015.01); H04B 17/29 (2015.01); H04B 17/309 (2015.01); H04B 17/318 (2015.01); H04W 24/10 (2009.01); H04B 17/24 (2015.01); H04W 24/04 (2009.01)
CPC H04W 24/08 (2013.01) [H04B 17/20 (2015.01); H04B 17/23 (2015.01); H04B 17/26 (2015.01); H04B 17/27 (2015.01); H04B 17/29 (2015.01); H04B 17/309 (2015.01); H04B 17/318 (2015.01); H04W 24/10 (2013.01); H04B 17/24 (2015.01); H04W 24/04 (2013.01)] 20 Claims

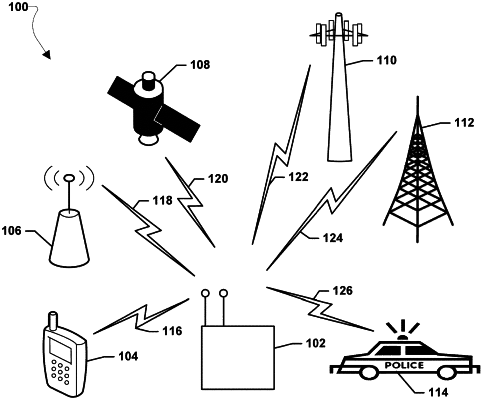

OG exemplary drawing

1. An apparatus for signal detection in an electromagnetic environment, comprising:
at least one receiver, at least one processor, and at least one memory;
wherein the apparatus is operable to create power level measurements of the electromagnetic environment;
wherein the apparatus is operable to reveal and/or classify at least one signal based on an identification and/or a classification algorithm;
wherein the identification and/or classification algorithm are operable to identify temporal features in real time;
wherein the apparatus includes a temporal feature extraction (TFE) function;
wherein the TFE function is operable to create impressions of the electromagnetic environment based on at least one machine learning (ML) algorithm;
wherein the TFE function is operable to identify at least one narrowband signal and at least one wideband signal in a same frequency and hidden by a second wideband signal based on historical data;
wherein the apparatus is operable to calculate a first derivative of the power level measurements and a second derivative of the power level measurements;
wherein the apparatus is operable to process signal data using compressed data for deltas;
wherein the deltas are differentials from at least one baseline and minimize data sets or sample data required for comparisons and/or analytics; and
wherein the apparatus is operable to reconstruct the at least one signal using the deltas and the at least one baseline.
