US 12,207,063 B2
Automatic audio equalization for online conferences
Yuhui Chen, San Jose, CA (US); and Zhaofeng Jia, Saratoga, CA (US)
Assigned to Zoom Video Communications, Inc., San Jose, CA (US)
Filed by Zoom Video Communications, Inc., San Jose, CA (US)
Filed on Sep. 26, 2022, as Appl. No. 17/952,469.
Prior Publication US 2024/0107230 A1, Mar. 28, 2024
Int. Cl. H04R 3/04 (2006.01); G10L 21/0208 (2013.01); H03G 5/16 (2006.01); H04N 7/14 (2006.01); H04N 7/15 (2006.01)
CPC H04R 3/04 (2013.01) [G10L 21/0208 (2013.01); H03G 5/165 (2013.01); H04N 7/147 (2013.01); H04N 7/15 (2013.01); G10L 2021/02082 (2013.01)] 20 Claims

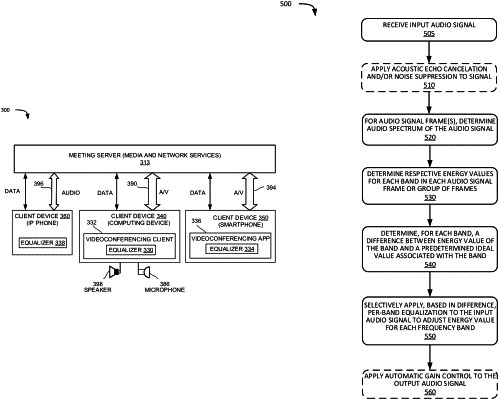

OG exemplary drawing

1. A method comprising:
receiving an input audio signal at a client device;
determining an audio spectrum of an audio signal frame of the input audio signal;
determining a respective energy value for each frequency band of a plurality of frequency bands in the audio signal frame;
determining, for each frequency band of the plurality of frequency bands, a difference between the respective energy value of the respective frequency band and a predetermined ideal band value associated with the respective frequency band, wherein the respective energy value is a ratio of energy within a given band to an entire energy of the plurality of frequency bands; and
selectively applying, in real time, based on the differences, per-band equalization to the input audio signal to adjust the respective energy value for each frequency band of the plurality of frequency bands to produce an output audio signal.
